ISL706AEH - 5.0V/3.3V u-Processor Supervisory Circuits

Download the ISL706AEH datasheet PDF (ISL705ARH included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 5.0v/3.3v u-processor supervisory circuits.

Description

3.

.

.

.

Features

  • Electrically screened to SMD 5962-11213.
  • QML qualified per MIL-PRF-38535 requirements.
  • Precision supply voltage monitor.
  • 4.65V threshold in the ISL7x5AxH/BxH/CxH.
  • 3.08V threshold in the ISL7x6AxH/BxH/CxH.
  • 200ms (typ) reset pulse width.
  • Active high, active low, and open-drain options.
  • Independent watchdog timer with 1.6s (typ) timeout.
  • Precision threshold detector.
  • 1.25V threshold in the ISL7x5AxH/BxH/CxH.
  • 0.6V threshold.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ISL705ARH_Intersil.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • ISL70001SRH - Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator (Intersil Corporation)
  • ISL71090SEHF25 - Radiation Hardened Ultra Low Noise / Precision Voltage Reference (Intersil Corporation)
  • ISL7119RH - Radiation Hardened High Speed Dual Voltage Comparator (Intersil Corporation)
  • ISL7124SRH - Quad Operational Amplifiers (Intersil Corporation)
  • ISL72026SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72027SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72028SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72991RH - Radiation Hardened Negative Low Dropout Adjustable Voltage Regulator (Intersil Corporation)
  • ISL73096RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
  • ISL73127RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
Other Datasheets by Intersil
  • ISL706ARH - 5.0V/3.3V u-Processor Supervisory Circuits
  • ISL70617SEH - 36V Radiation Tolerant Precision Instrumentation Amp
  • ISL706BEH - 5.0V/3.3V u-Processor Supervisory Circuits
  • ISL706BRH - 5.0V/3.3V u-Processor Supervisory Circuits
  • ISL706CEH - 5.0V/3.3V u-Processor Supervisory Circuits
  • ISL706CRH - 5.0V/3.3V u-Processor Supervisory Circuits
  • ISL70001ASEH - Rad Hard and SEE Hard 6A Synchronous Buck Regulator
  • ISL70001SEH - Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator

Full PDF Text Transcription

Click to expand full text

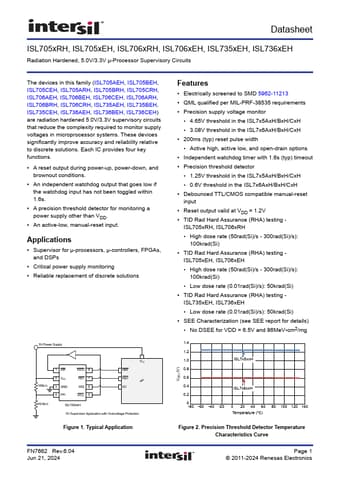

Datasheet ISL705xRH, ISL705xEH, ISL706xRH, ISL706xEH, ISL735xEH, ISL736xEH Radiation Hardened, 5.0V/3.3V µ-Processor Supervisory Circuits The devices in this family (ISL705AEH, ISL705BEH, ISL705CEH, ISL705ARH, ISL705BRH, ISL705CRH, ISL706AEH, ISL706BEH, ISL706CEH, ISL706ARH, ISL706BRH, ISL706CRH, ISL735AEH, ISL735BEH, ISL735CEH, ISL736AEH, ISL736BEH, ISL736CEH) are radiation hardened 5.0V/3.3V supervisory circuits that reduce the complexity required to monitor supply voltages in microprocessor systems. These devices significantly improve accuracy and reliability relative to discrete solutions. Each IC provides four key functions. ▪ A reset output during power-up, power-down, and brownout conditions.
