ISL705BEH 5.0V/3.3V u-Processor Supervisory Circuits

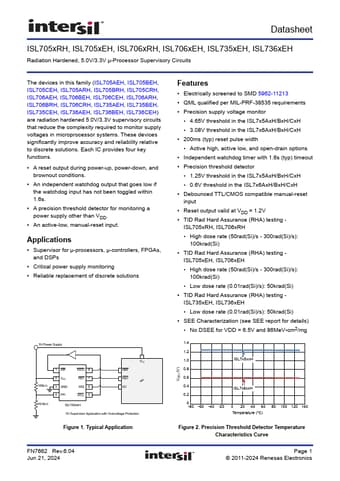

Datasheet ISL705xRH, ISL705xEH, ISL706xRH, ISL706xEH, ISL735xEH, ISL736xEH Radiation Hardened, 5.0V/3.3V µ-Processor Supervisory Circuits The devices in this family (ISL705AEH, ISL705BEH, ISL705CEH, ISL705ARH, ISL705BRH, ISL705CRH, ISL706AEH, ISL706BEH, ISL706CEH, ISL706ARH, ISL706BRH, ISL706CRH, ISL735AEH, ISL735BEH, ISL735CEH, ISL736AEH, ISL736BEH, ISL736CEH) are radiation hardened 5.0V/3.3V supervisory circuits that reduce the complexity required to monitor supply voltages in microprocessor .

ISL705BEH Features

* ▪ Electrically screened to SMD 5962-11213 ▪ QML qualified per MIL-PRF-38535 requirements ▪ Precision supply voltage monitor

* 4.65V threshold in the ISL7x5AxH/BxH/CxH

* 3.08V threshold in the ISL7x6AxH/BxH/CxH ▪ 200ms (typ) reset pulse width

* Active high, active low, and ope

ISL705BEH Datasheet (955.57 KB)
