ISL70003SEH - 6A Buck Regulator

Features

  • two logic-level disable inputs that can be used to inhibit pulses on the phase (LXx) pins in order to.

📥 Download Datasheet

📁 Similar Datasheet

  • ISL70001SRH - Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator (Intersil Corporation)
  • ISL71090SEHF25 - Radiation Hardened Ultra Low Noise / Precision Voltage Reference (Intersil Corporation)
  • ISL7119RH - Radiation Hardened High Speed Dual Voltage Comparator (Intersil Corporation)
  • ISL7124SRH - Quad Operational Amplifiers (Intersil Corporation)
  • ISL72026SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72027SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72028SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72991RH - Radiation Hardened Negative Low Dropout Adjustable Voltage Regulator (Intersil Corporation)
  • ISL73096RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
  • ISL73127RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
Other Datasheets by Intersil
  • ISL70003ASEH - 9A Buck Regulator
  • ISL70001ASEH - Rad Hard and SEE Hard 6A Synchronous Buck Regulator
  • ISL70001SEH - Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator
  • ISL70002SEH - Radiation Hardened and SEE Hardened 12A Synchronous Buck Regulator
  • ISL70005SEH - Radiation Hardened Dual Output 3A Synchronous Buck and LDO Regulator
  • ISL70020SEH - 65A Enhancement Mode GaN Power Transistors
  • ISL70023SEH - 60A Enhancement Mode GaN Power Transistor
  • ISL70024SEH - 7.5A Enhancement Mode GaN Power Transistor

Full PDF Text Transcription

Click to expand full text

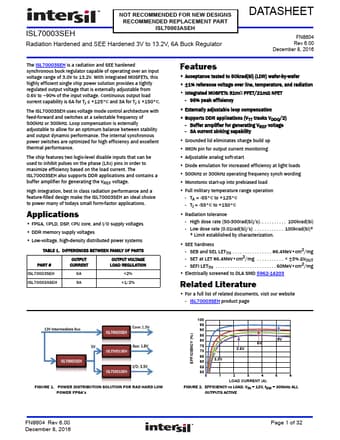

DATASHEET Radiation Hardened and SEE Hardened 3V to 13.2V, 6A Buck Regulator ISL70003SEH The ISL70003SEH is a radiation and SEE hardened synchronous buck regulator capable of operating over an input voltage range of 3.0V to 13.2V. With integrated MOSFETs, this highly efficient single chip power solution provides a tightly regulated output voltage that is externally adjustable from 0.6V to ~90% of the input voltage. Continuous output load current capability is 6A for TJ ≤+125°C and 3A for TJ ≤ +150°C. The ISL70003SEH uses voltage mode control architecture with feed-forward and switches at a selectable frequency of 500kHz or 300kHz. Loop compensation is externally adjustable to allow for an optimum balance between stability and output dynamic performance.
