ISL37231 - 10.3125 GbpS ReTImInG DuaL-ChanneL TRanSCeIveR

Features

  • Industry’s lowest power and highest performance 10.3125 Gbps active cable solution for STP, twinax and micro-coax copper cables.
  • Supports 64b/66b Encoding.
  • Fully Retimed Low Jitter Outputs.
  • Up to 19.5dB Off-Ramp Cable Loss Equalization.
  • Cable Group Delay Equalization.
  • Up to 10dB PCB On-Ramp Input Equalization.
  • 9dB Output De-Emphasis.
  • Supports Independent SSC on Each Lane.
  • On-chip Microcontroller and Eye M.

📥 Download Datasheet

📁 Similar Datasheet

  • ISL3034E - Auto-Direction Sensing Logic Level Translator (Renesas)
  • ISL3034E - Auto-Direction Sensing Logic Level Translator (Renesas)
  • ISL3035E - Auto-direction Sensing Logic Level Translator (Renesas)
  • ISL3036E - Auto-direction Sensing Logic Level Translator (Renesas)
  • ISL3084 - VCO (Intersil Corporation)
  • ISL3090 - 10GHz Vco (Intersil Corporation)
  • ISL3092 - 11GHz VCO (Intersil Corporation)
  • ISL31470E - RS-485/RS-422 Transceivers (Renesas)
  • ISL31472E - RS-485/RS-422 Transceivers (Renesas)
  • ISL31475E - RS-485/RS-422 Transceivers (Renesas)
Other Datasheets by Intersil

Full PDF Text Transcription

Click to expand full text

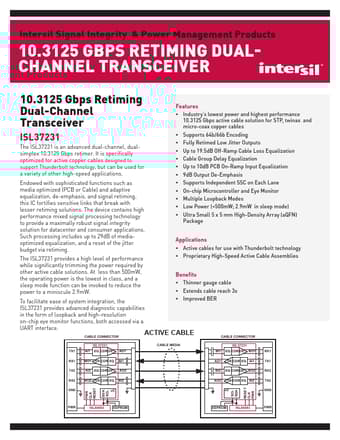

10.3125 Gbps Retiming DualChannel Transceiver 10.3125 Gbps Retiming Dual-Channel Transceiver ISL37231 The ISL37231 is an advanced dual-channel, dualsimplex 10.3125 Gbps retimer. It is specifically optimized for active copper cables designed to support Thunderbolt technology, but can be used for a variety of other high-speed applications. Endowed with sophisticated functions such as media optimized (PCB or Cable) and adaptive equalization, de-emphasis, and signal retiming, this IC fortifies sensitive links that break with lesser retiming solutions. The device contains high performance mixed signal processing technology to provide a maximally robust signal integrity solution for datacenter and consumer applications.
