IRFR9220 P Channel Power MOSFET

IRFR9220, IRFU9220 Data Sheet July 1999 File Number 4015.3 3.6A, 200V, 1.500 Ohm, P-Channel Power MOSFETs These are advanced power MOSFETs designed, tested, and guaranteed to withstand a speciﬁc level of energy in the avalanche breakdown mode of operation. These are P-Channel enhancement-mode silicon gate power ﬁeldeffect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers, and drivers for high-power bipolar switching transistor.

IRFR9220 Features

* 3.6A, 200V

* rDS(ON) = 1.500Ω

* Temperature Compensating PSPICE® Model

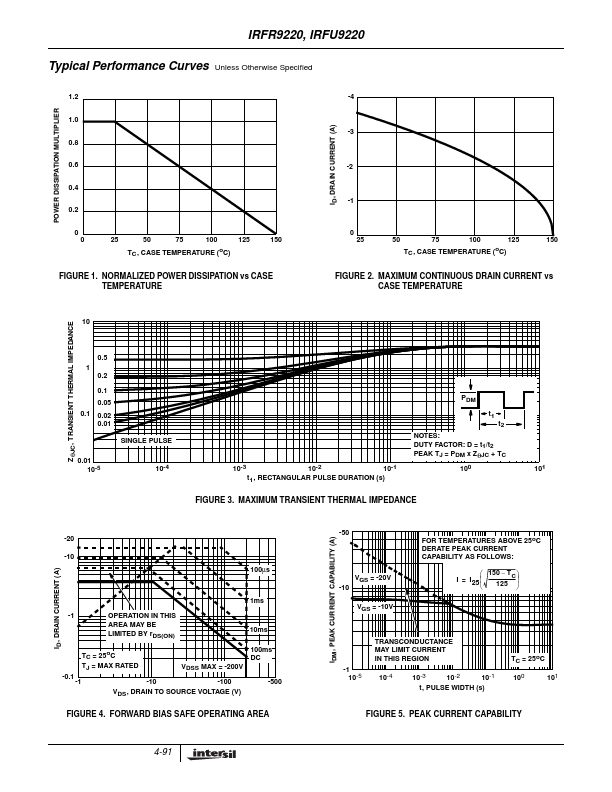

* Peak Current vs Pulse Width Curve

* UIS Rating Curve

* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Symbol D Ordering Informatio
