HS-565BEH, HS-565BRH Monolithic Digital-to-Analog Converter

HS-565BEH Description

Radiation Hardened High Speed, Monolithic Digital-to-Analog Converter HS-565BRH, HS-565BEH The HS-565BRH, HS-565BEH are fast, radiation hardened 12-b.

HS-565BEH Features

* Electrically Screened to SMD # 5962-96755
* QML Qualified per MIL-PRF-38535 Requirements
* Total Dose
* . 100 krad (Si) (Max)
* DAC and Reference on a Single Chip
* Pin Compatible with AD-565A and HI-565A

HS-565BEH Applications

* High Speed A/D Converters
* Precision Instrumentation
* Signal Reconstruction REF OUT VCC 4 3 + - 6 REF IN 5 REF GND 19.95k 10V IREF 0.5mA 3.5k + - 3k BIP. OFF. 8 9.95k DAC IO (4X IREF X CODE) 11 20V SPAN 5k 10 10V SPAN 5k 9 OUT 2.5k 7 -VEE 12 PWR GND 24 . . . 1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HS-565BEH, HS-565BRH. Please refer to the document for exact specifications by model.

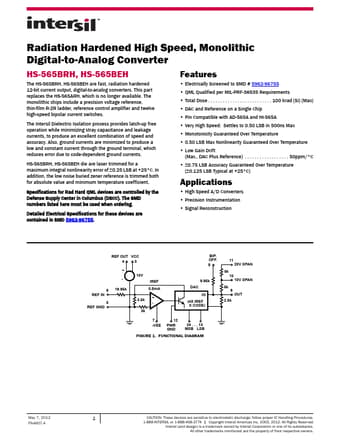

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HS-565BEH, HS-565BRH
Manufacturer
Intersil
File Size
418.69 KB
Datasheet
HS-565BRH-Intersil.pdf
Description
Monolithic Digital-to-Analog Converter
Note
This datasheet PDF includes multiple part numbers: HS-565BEH, HS-565BRH.
Please refer to the document for exact specifications by model.
