HI-507A, HI-506A CMOS Analog MUX

HI-507A Description

Data Sheet HI-506A, HI-507A, HI-508A, HI-509A June 1999 File Number 3143.2 16-Channel, 8-Channel, Differential 8-Channel and Differential 4-Channel,.

HI-507A Features

* make the HI-506A, HI-507A, HI-508A and HI-509A ideal for use in systems where the analog inputs originate from external equipment, or separately powered circuitry. All devices are fabricated with 44V dielectrically isolated CMOS technology. The HI-506A is a single 16-Channel multiplexer, the HI-507A

HI-507A Applications

* Data Acquisition Systems
* Industrial Controls
* Telemetry Ordering Information PART NUMBER HI1-0506A-2 TEMP. RANGE (oC) -55 to 125 PACKAGE 28 Ld CERDIP HI1-0506A-5 0 to 75 28 Ld CERDIP HI1-0506A-8 -55 to 125 28 Ld CERDIP + 160 Hour Burn-In HI3-0506A-5 0 to 75

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HI-507A, HI-506A. Please refer to the document for exact specifications by model.

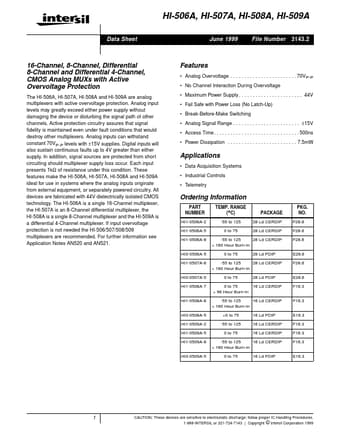

datasheet Preview Page 2 datasheet Preview Page 3
