® EL6238 www.DataSheet4U.com Data Sheet July 25, 2003 FN7353 Dual 4 Channel Driver with Oscillator The EL6238 is a high performance, dual output, laser driver for writeable ‘super-combo’ CD - DVD drive. The ENA pin enables the chip, while the SEL1 pin selects the IOUT pin. Various waveforms can be generated where the amplitude is determined by the currents flowing into IINR, IIN2, IIN3, and IIN4. The timing is determined by the signals at OUTEN2, OUTEN3, and OUTEN4. The oscillator is enable.

EL6238 Features

* Two channels for CD or DVD

* Voltage-controlled output current source requiring one external set resistor per channel

* Rise time = 0.8ns

* Fall time = 0.8ns

* Channel 2 to 250mA max.

* Channel 3 to 150mA max.

* Channel 4 to 100mA max

EL6238 Datasheet (43.07 KB)

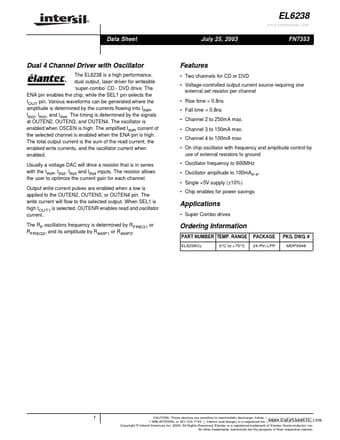

EL6238 Datasheet Preview — Preview of EL6238 PDF

Datasheet Details

Part number:

EL6238

Manufacturer:

Intersil

File Size:

43.07 KB

Description:

Dual 4 channel driver.
