EL2450 - 125MHz Single Supply Dual/Quad Op Amps

Download the EL2450 datasheet PDF. This datasheet also covers the EL2250 variant, as both devices belong to the same 125mhz single supply dual/quad op amps family and are provided as variant models within a single manufacturer datasheet.

Features

  • Specified for +3V, +5V, or ±5V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EL2250-Intersil.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
EL2450 (EL2250 / EL2450) 125MHz Single Supply Dual/Quad Op Amps Intersil Corporation
EL2450C 125MHz Single Supply Dual/Quad Op Amps Elantec Semiconductor
EL240.128.45 EL Small Graphics Display Planar Systems
EL2410C Low Cost/ Dual/ Triple and Quad Video Op Amps Elantec Semiconductor
EL2411C Low Cost/ Dual/ Triple and Quad Video Op Amps Elantec Semiconductor

Other Datasheets by Intersil (Renesas)

Part Number Description
EL2444 Dual/Quad Low-Power 120MHz Unity-Gain Stable Op Amp
EL2445 Dual/Quad Low-Power 100MHz Gain-of-2 Stable Op Amp
EL2470 Feedback Amplifier
EL2001 70MHz Buffer Amplifier
EL2002 180MHz Buffer Amplifier

Full PDF Text Transcription

Click to expand full text

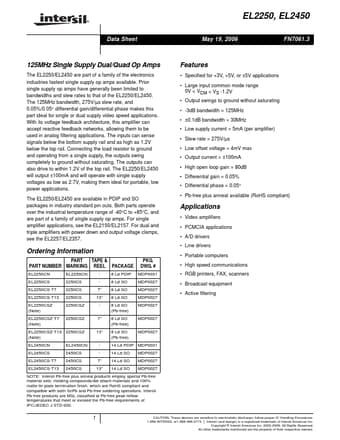

® Data Sheet EL2250, EL2450 May 19, 2006 FN7061.3 125MHz Single Supply Dual/Quad Op Amps The EL2250/EL2450 are part of a family of the electronics industries fastest single supply op amps available. Prior single supply op amps have generally been limited to bandwidths and slew rates to that of the EL2250/EL2450. The 125MHz bandwidth, 275V/µs slew rate, and 0.05%/0.05° differential gain/differential phase makes this part ideal for single or dual supply video speed applications. With its voltage feedback architecture, this amplifier can accept reactive feedback networks, allowing them to be used in analog filtering applications. The inputs can sense signals below the bottom supply rail and as high as 1.2V below the top rail.
