CA3126 - TV Chroma Processor

Intersil

📥 Download Datasheet

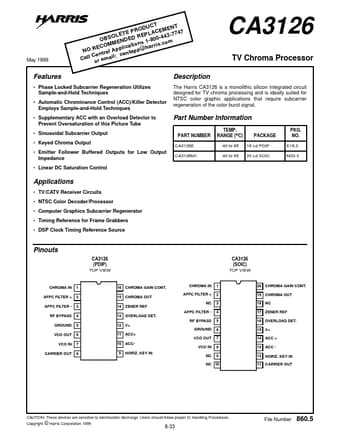

CA3126 Datasheet Preview — Preview of CA3126 PDF

Datasheet Details

Part number	CA3126
Manufacturer	Intersil
File Size	112.75 KB
Description	TV Chroma Processor
Datasheet	CA3126_Intersil.pdf

CA3126 Product details

Description

The Harris CA3126 is a monolithic silicon integrated circuit designed for TV chroma processing and is ideally suited for NTSC color graphic applications that require subcarrier regeneration of the color burst signal. TV/CATV Receiver Circuits NTSC Color Decoder/Processor Computer Graphics Subcarrier Regenerator

Features

Phase Locked Subcarrier Regeneration Utilizes Sample-and-Hold Techniques.
Automatic Chrominance Control (ACC)/Killer Detector Employs Sample-and-Hold Techniques.
Supplementary ACC with an Overload Detector to Prevent Oversaturation of this Picture Tube.
Sinusoidal Subcarrier Output.
Keyed Chroma Output.
Emitter Follower Buffered Outputs for Low Output Impedance.
Linear DC Saturation Control.
