CA3094B, CA3094 - 30MHz / High Output Current Operational Transconductance Amplifier

Name: CA3094B
SKU: CA3094B-581334

Intersil

The CA3094B by Intersil is a 30MHz / High Output Current Operational Transconductance Amplifier. Below is the official datasheet preview.

Datasheet Details

Part number	CA3094B, CA3094
Manufacturer	Intersil
File Size	241.01 KB
Description	30MHz / High Output Current Operational Transconductance Amplifier
Datasheet	CA3094_Intersil.pdf
Note	This datasheet PDF includes multiple part numbers: CA3094B, CA3094. Please refer to the document for exact specifications by model.

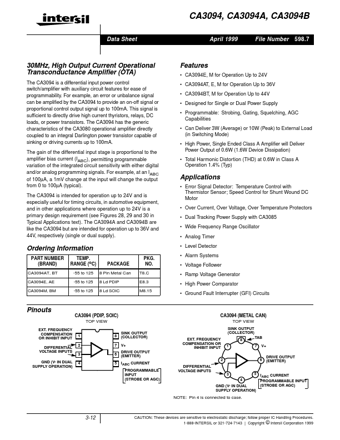

Additional preview pages of the CA3094B datasheet.

for ease of programmability. For example, an error or unbalance signal can be amplified by the CA3094 to provide an on-off signal or proportional control output signal up to 100mA. This signal is sufficient to directly drive high current thyristors, relays, DC loads, or power transistors. The CA3094 has the generic characteristics of the CA3080 operational amplifier directly coupled to an integral Darlington power transistor capable of sinking or driving currents up to 100mA. The gain of the dif.
