X40021, X40020 - Dual Voltage Monitor

X40021 Description

® X40020, X40021 Data Sheet May 17, 2006 FN8112.1 Dual Voltage Monitor with Integrated CPU Supervisor and System Battery Switch .
The X40020 combines power-on reset control, watchdog timer, supply voltage supervision, and secondary supervision, and manual reset, in one package.

X40021 Features

* Dual voltage detection and reset assertion
* Three standard reset threshold settings (4.6V/2.9V, 4.6V/2.6V, 2.9V/1.6V)
* VTRIP2 programmable down to 0.9V
* Adjust low voltage reset threshold voltages using special programming sequence
* Reset signal valid to VCC

X40021 Applications

* Communications equipment
* Routers, hubs, switches
* Disk arrays
* Industrial systems
* Process control
* Intelligent instrumentation
* Computer systems
* Desktop computers
* Network servers X40020, X40021 Standard VTRIP1 Level Stan

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: X40021, X40020. Please refer to the document for exact specifications by model.

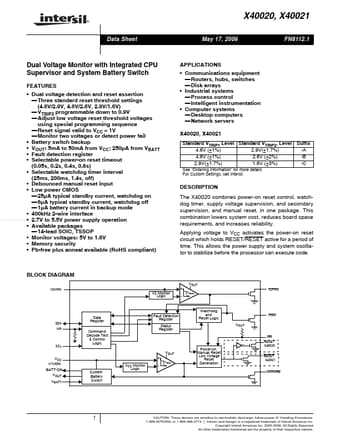

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
X40021, X40020
Manufacturer
Intersil Corporation
File Size
382.12 KB
Datasheet
X40020_IntersilCorporation.pdf
Description
Dual Voltage Monitor
Note
This datasheet PDF includes multiple part numbers: X40021, X40020.
Please refer to the document for exact specifications by model.
