L9106 - ISL9106

Key Features

  • include internal digital soft-start, enable for power sequence, overcurrent protection, and thermal shutdown. The ISL9106 is offered in 10 Ld 3mmx3mm DFN package with 0.9mm typical height. The complete converter can occupy less than 1cm2 area. Features.
  • High Efficiency Integrated Synchronous Buck Regulator with up to 95% Efficiency.
  • 2.7V to 5.5V Supply Voltage.
  • 17μA Quiescent Supply Current in Skip (Low IQ) Mode.
  • 1.2A Guaranteed Output Current.
  • 3% Ou.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
L9110 Motor control driver ASIC
L9110 Motor Control Driver ETC
L9110S Motor control drive IC UMW
L9120 Motor Control Driver Chip Kennedy Electronics
L9120 Motor control driver chip Kennedy Sung

Other Datasheets by Intersil (Renesas)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

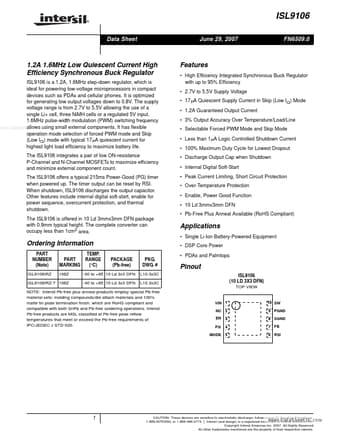

® ISL9106 Data Sheet June 29, 2007 FN6509.0 1.2A 1.6MHz Low Quiescent Current High Efficiency Synchronous Buck Regulator ISL9106 is a 1.2A, 1.6MHz step-down regulator, which is ideal for powering low-voltage microprocessors in compact devices such as PDAs and cellular phones. It is optimized for generating low output voltages down to 0.8V. The supply voltage range is from 2.7V to 5.5V allowing the use of a single Li+ cell, three NiMH cells or a regulated 5V input. 1.6MHz pulse-width modulation (PWM) switching frequency allows using small external components. It has flexible www.DataSheet4U.com operation mode selection of forced PWM mode and Skip (Low IQ) mode with typical 17μA quiescent current for highest light load efficiency to maximize battery life.
