ITF87012SVT - 6A/ 20V/ 0.035 Ohm/ N-Channel/ 2.5V Specified Power MOSFET

Name: ITF87012SVT
SKU: ITF87012SVT-254345

Intersil Corporation

The ITF87012SVT by Intersil Corporation is a 6A/ 20V/ 0.035 Ohm/ N-Channel/ 2.5V Specified Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

ITF87012SVT 6A/ 20V/ 0.035 Ohm/ N-Channel/ 2.5V Specified Power MOSFET by Intersil Corporation - Datasheet Preview — Official preview page of the **ITF87012SVT** 6A/ 20V/ 0.035 Ohm/ N-Channel/ 2.5V Specified Power MOSFET datasheet (Intersil Corporation).

Datasheet Details

Part number	ITF87012SVT
Manufacturer	Intersil Corporation
File Size	249.29 KB
Description	6A/ 20V/ 0.035 Ohm/ N-Channel/ 2.5V Specified Power MOSFET
Datasheet	ITF87012SVT_IntersilCorporation.pdf

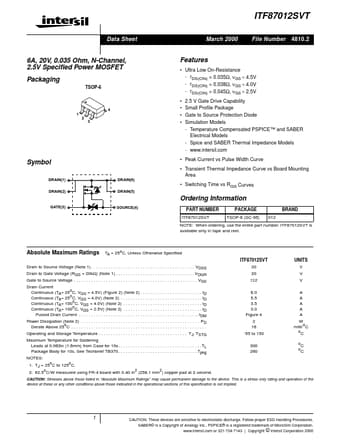

Additional preview pages of the ITF87012SVT datasheet.

ITF87012SVT Product details

Features

Ultra Low On-Resistance - rDS(ON) = 0.035Ω, VGS = 4.5V - rDS(ON) = 0.038Ω, VGS = 4.0V - rDS(ON) = 0.045Ω, VGS = 2.5V.
2.5 V Gate Drive Capability Small Proﬁle Package Gate to Source Protection Diode Simulation Models - Temperature Compensated PSPICE™ and SABER Electrical Models - Spice and SABER Thermal Impedance Models - www. intersil. com 4 1 2 3 Symbol DRAIN(1) DRAIN(2) DRAIN(6).
Peak Current vs Pulse Width Curve.
Transient T.
