ISL6226 - Advanced PWM and Linear Power Controller for Portable Applications

Intersil Corporation

📥 Download Datasheet

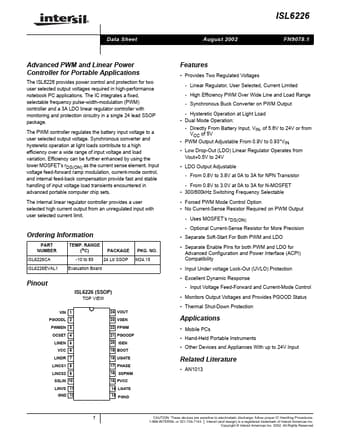

ISL6226 Datasheet Preview — Preview of ISL6226 PDF

Datasheet Details

Part number	ISL6226
Manufacturer	Intersil Corporation
File Size	384.68 KB
Description	Advanced PWM and Linear Power Controller for Portable Applications
Datasheet	ISL6226_IntersilCorporation.pdf

ISL6226 Product details

Description

VIN (Pin 1) Provides battery voltage to the oscillator for feed-forward rejection of the input voltage variation.Also, this pin programs frequency of the internal clock and gain of the ramp generator.PGOODL (Pin 2) PGOODL is an open drain output used to indicate the status of the LDO output voltages.This pin is pulled low when the output voltage is not within of its respective nominal voltage or over 120mV between pin 8 and 9. capacitor till it reaches the value of 0.8V.At this moment the

Features

Provides Two Regulated Voltages - Linear Regulator, User Selected, Current Limited - High Efficiency PWM Over Wide Line and Load Range - Synchronous Buck Converter on PWM Output - Hysteretic Operation at Light Load.
Dual Mode Operation: - Directly From Battery Input, VIN, of 5.6V to 24V or from VCC of 5V.
PWM Output Adjustable From 0.9V to 0.93.
VIN.
Low Drop-Out (LDO) Linear Regulator Operates from Vout+0.5V to 24V.
LDO Output Adjustable - From 0.
