IS82C85 - CMOS Static Clock Controller/Generator

Name: IS82C85
SKU: IS82C85-261161

Intersil Corporation

📥 Download Datasheet

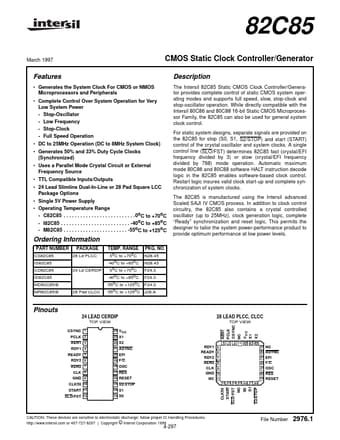

IS82C85 Datasheet Preview — Preview of IS82C85 PDF

Datasheet Details

Part number	IS82C85
Manufacturer	Intersil Corporation
File Size	170.43 KB
Description	CMOS Static Clock Controller/Generator
Datasheet	IS82C85_IntersilCorporation.pdf

IS82C85 Product details

Description

The Intersil 82C85 Static CMOS Clock Controller/Generator provides complete control of static CMOS system operating modes and supports full speed, slow, stop-clock and stop-oscillator operation.

Features

Generates the System Clock For CMOS or NMOS Microprocessors and Peripherals.
Complete Control Over System Operation for Very Low System Power - Stop-Oscillator - Low Frequency - Stop-Clock - Full Speed Operation.
DC to 25MHz Operation (DC to 8MHz System Clock).
Generates 50% and 33% Duty Cycle Clocks (Synchronized).
Uses a Parallel Mode Crystal Circuit or External Frequency Source.
TTL Compatible Inputs/Outputs.
24 Lead Slimline Dua.
