HUF76639S3S - N-Channel MOSFET

Features

  • JEDEC TO-263AB DRAIN (FLANGE) GATE SOURCE DRAIN (FLANGE).
  • Ultra Low On-Resistance - rDS(ON) = 0.026Ω, VGS = 10V - rDS(ON) = 0.027Ω, VGS = 5V.
  • Simulation Models - Temperature Compensated PSPICE® and SABER© Electrical Models - Spice and SABER© Thermal Impedance Models - www. Intersil. com.
  • Peak Current vs Pulse Width Curve.
  • UIS Rating Curve HUF76639P3 HUF76639S3S Symbol D.
  • Switching Time vs RGS Curves Ordering Information PART NUMBER.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HUF76639S3S N-Channel MOSFET Fairchild Semiconductor
HUF76639S3ST-F085 N-Channel Power MOSFET ON Semiconductor
HUF76639P3 N-Channel MOSFET Fairchild Semiconductor
HUF76633P3 N-Channel MOSFET Fairchild Semiconductor
HUF76633P3_F085 Power MOSFET Fairchild Semiconductor

Other Datasheets by Intersil (Renesas)

Part Number Description
HUF76639P3 N-Channel MOSFET
HUF76633P3 N-Channel MOSFET
HUF76633S3S N-Channel MOSFET
HUF76609D3 N-Channel MOSFET
HUF76609D3S N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

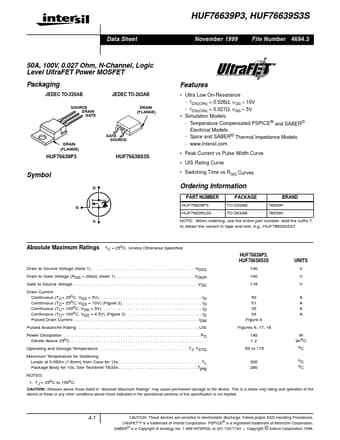

HUF76639P3, HUF76639S3S Data Sheet November 1999 File Number 4694.3 50A, 100V, 0.027 Ohm, N-Channel, Logic Level UltraFET Power MOSFET Packaging JEDEC TO-220AB SOURCE DRAIN GATE Features JEDEC TO-263AB DRAIN (FLANGE) GATE SOURCE DRAIN (FLANGE) • Ultra Low On-Resistance - rDS(ON) = 0.026Ω, VGS = 10V - rDS(ON) = 0.027Ω, VGS = 5V • Simulation Models - Temperature Compensated PSPICE® and SABER© Electrical Models - Spice and SABER© Thermal Impedance Models - www.Intersil.com • Peak Current vs Pulse Width Curve • UIS Rating Curve HUF76639P3 HUF76639S3S Symbol D • Switching Time vs RGS Curves Ordering Information PART NUMBER PACKAGE TO-220AB TO-263AB BRAND 76639P 76639S HUF76639P3 HUF76639S3S G S NOTE: When ordering, use the entire part number.
