HS9-1254RH-Q Radiation Hardened/ High Speed/ Low Power Dual Operational Amplifier with Disable

HS9-1254RH-Q Description

HS-1254RH PRELIMINARY April 1998 Radiation Hardened, High Speed, Low Power Dual Operational Amplifier with Disable .
The HS-1254RH is a ±5V, Rad Hard, monolithic, dual, current feedback amplifier that provides highly reliable performance in harsh radiation environmen.

HS9-1254RH-Q Features

* QML Qualified Per MIL-PRF-38535 Requirements
* Radiation Environment - Total Dose
* . 3 x 105 RAD(Si) - SEL Immune
* . Bonded Wafer DI Process
* Low Quiescent Current (per amp)
* . 6.1mA (Max)
* Disabled Supply

HS9-1254RH-Q Applications

* The outputs have individual disable control pins that make it easy to multiplex wideband signals, putting the outputs in a high impedance mode and reducing the supply current per op amp down to 3mA (typical). Post radiation limits are fully specified and guaranteed to 300kRAD(Si) total dose to ensur

📥 Download Datasheet

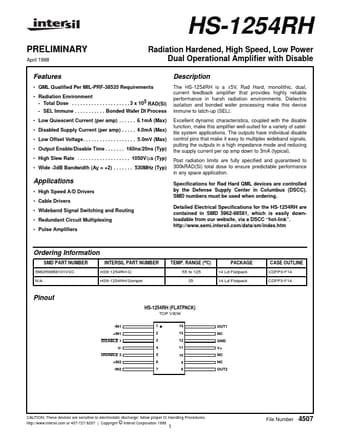

Preview of HS9-1254RH-Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HS9-1254RH-Q
Manufacturer
Intersil Corporation
File Size
18.26 KB
Datasheet
HS9-1254RH-Q_IntersilCorporation.pdf
Description
Radiation Hardened/ High Speed/ Low Power Dual Operational Amplifier with Disable
