HS1-82C54RH-8 Radiation Hardened CMOS Programmable Interval Timer

HS1-82C54RH-8 Description

HS-82C54RH August 1995 Radiation Hardened CMOS Programmable Interval Timer Pinouts 24 LEAD CERAMIC DUAL-IN-LINE METAL SEAL PACKAGE (SBDIP) MIL-STD-18.
The Intersil HS-82C54RH is a high performance, radiation hardened CMOS version of the industry standard 8254 and is manufactured using a hardened field.

HS1-82C54RH-8 Features

* Radiation Hardened - Total Dose > 105 RAD (Si) - Transient Upset > 108 RAD (Si)/sec - Latch Up Free EPI-CMOS - Functional After Total Dose 1 x 106 RAD (Si)
* Low Power Consumption - IDDSB = 20µA - IDDOP = 12mA
* Pin Compatible with NMOS 8254 and the Intersil 82C54

📥 Download Datasheet

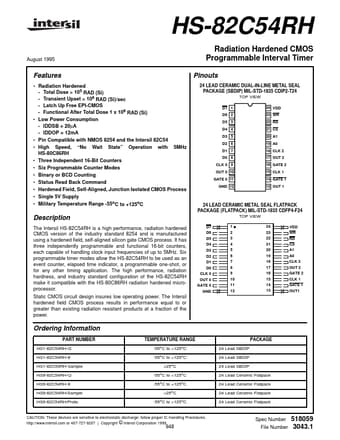

Preview of HS1-82C54RH-8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HS1-82C54RH-8
Manufacturer
Intersil Corporation
File Size
171.56 KB
Datasheet
HS1-82C54RH-8_IntersilCorporation.pdf
Description
Radiation Hardened CMOS Programmable Interval Timer
