HS1-80C86RH-Q - Radiation Hardened 16-Bit CMOS Microprocessor

Name: HS1-80C86RH-Q
SKU: HS1-80C86RH-Q-172157

Intersil Corporation

📥 Download Datasheet

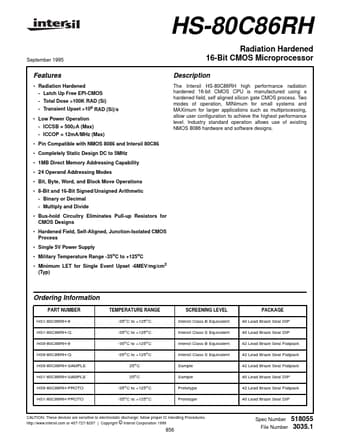

HS1-80C86RH-Q Datasheet Preview — Preview of HS1-80C86RH-Q PDF

Datasheet Details

Part number	HS1-80C86RH-Q
Manufacturer	Intersil Corporation
File Size	239.93 KB
Description	Radiation Hardened 16-Bit CMOS Microprocessor
Datasheet	HS1-80C86RH-Q_IntersilCorporation.pdf

HS1-80C86RH-Q Product details

Description

The Intersil HS-80C86RH high performance radiation hardened 16-bit CMOS CPU is manufactured using a hardened ﬁeld, self aligned silicon gate CMOS process.

Features

Radiation Hardened - Latch Up Free EPl-CMOS - Total Dose >100K RAD (Si) - Transient Upset >108 RAD (Si)/s.
Low Power Operation - ICCSB = 500µA (Max) - ICCOP = 12mA/MHz (Max).
Pin Compatible with NMOS 8086 and Intersil 80C86.
Completely Static Design DC to 5MHz.
1MB Direct Memory Addressing Capability.
24 Operand Addressing Modes.
Bit, Byte, Word, and Block Move Operations.
8-Bit and 16-Bit Signed/Unsigned Arithmetic - Binar.
