HS1-2420RH-Q - Radiation Hardened Fast Sample and Hold

Intersil Corporation

📥 Download Datasheet

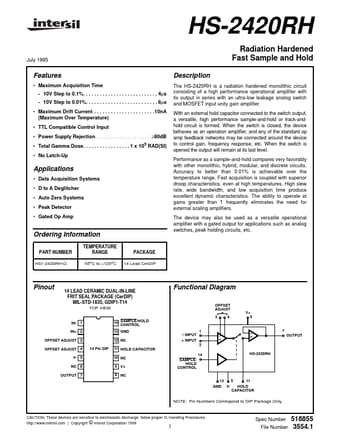

HS1-2420RH-Q Datasheet Preview — Preview of HS1-2420RH-Q PDF

Datasheet Details

Part number	HS1-2420RH-Q
Manufacturer	Intersil Corporation
File Size	122.71 KB
Description	Radiation Hardened Fast Sample and Hold
Datasheet	HS1-2420RH-Q_IntersilCorporation.pdf

HS1-2420RH-Q Product details

Description

The HS-2420RH is a radiation hardened monolithic circuit consisting of a high performance operational ampliﬁer with its output in series with an ultra-low leakage analog switch and MOSFET input unity gain ampliﬁer.

Features

Maximum Acquisition Time - 10V Step to 0.1%.
. . 4µs - 10V Step to 0.01%.
. 6µs.
Maximum Drift Current.
. .10nA (Maximum Over Temperature).
TTL Compatible Control Input.
Power Supply Rejection.
. . ≥80dB.
Total Gamma Dose.
. . 1 x 105 RAD(SI).
No Latch-Up Applicat.
