HS-139RH Radiation Hardened Quad Voltage Comparator

HS-139RH Description

HS-139RH, HS-139EH Radiation Hardened Quad Voltage Comparator The Radiation Hardened HS-139RH, HS-139EH consists of four independent single or dual su.
(RoHS Compliant) PKG.

HS-139RH Features

* QML qualified per MIL-PRF-38535 requirements
* Radiation environment - Latch-up free under any conditions - Total dose (Max)
* . . 3 x 105 RAD(Si) - SEU LET threshold
* . . . . 20MeV/cm2/mg - Low dose rate effects immunity

HS-139RH Applications

* These types were designed to directly interface with TTL and CMOS. The HS-139RH, HS-139EH are fabricated on our dielectrically isolated Rad Hard Silicon Gate (RSG) process, which provides an immunity to Single Event Latch-up and the capability of highly reliable performance in any radiation environ

📥 Download Datasheet

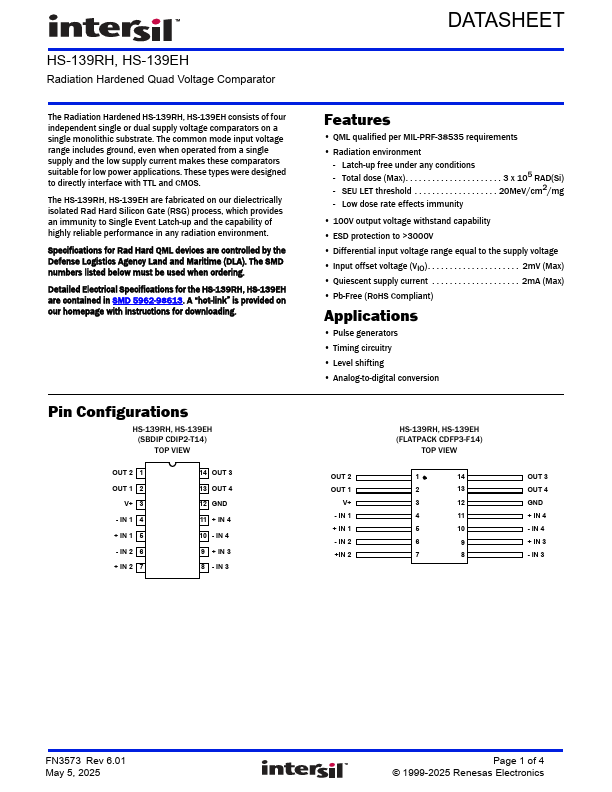

Preview of HS-139RH PDF

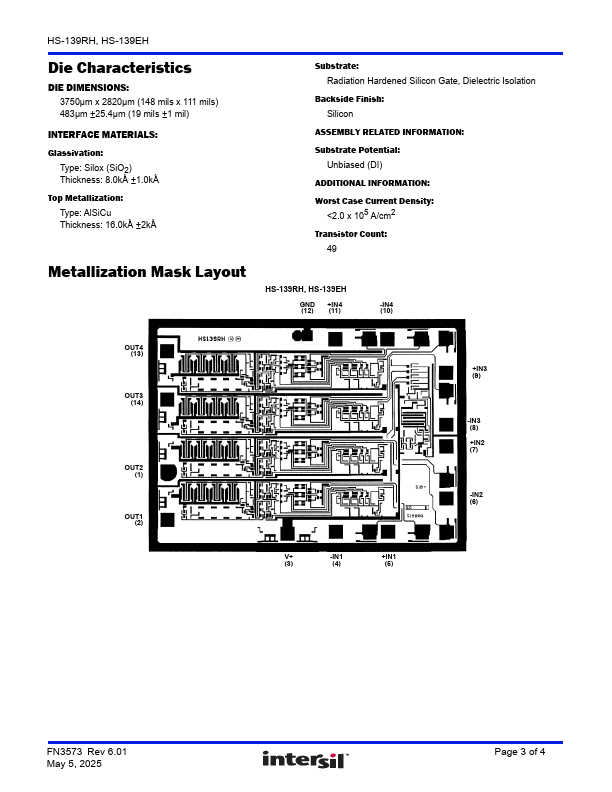

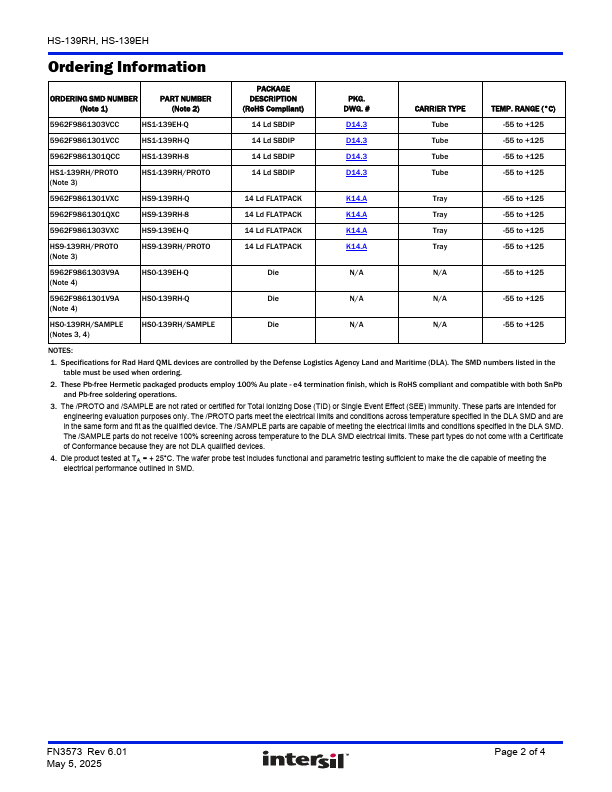

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HS-139RH
Manufacturer
Intersil Corporation
File Size
565.63 KB
Datasheet
HS-139RH_IntersilCorporation.pdf
Description
Radiation Hardened Quad Voltage Comparator
