HIN238 - +5V Powered RS-232 Transmitters/Receivers

Intersil Corporation

📥 Download Datasheet

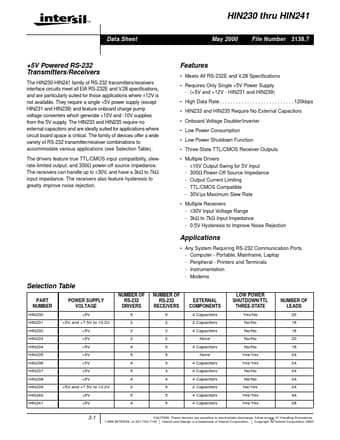

HIN238 Datasheet Preview — Preview of HIN238 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HIN238
Manufacturer: Intersil Corporation
File Size: 379.85 KB
Datasheet: HIN238_IntersilCorporation.pdf
Description: +5V Powered RS-232 Transmitters/Receivers

HIN238 Product details

Description

PIN VCC V+ VGND C1+ C1C2+ C2TIN TOUT RIN ROUT EN

Features

Meets All RS-232E and V.28 Speciﬁcations.
Requires Only Single +5V Power Supply - (+5V and +12V - HIN231 and HIN239).
High Data Rate.
. . 120kbps.
HIN233 and HIN235 Require No External Capacitors.
Onboard Voltage Doubler/Inverter.
Low Power Consumption.
Low Power Shutdown Function.
Three-State TTL/CMOS Receiver Outputs.
Multiple Drivers - ±10V Output Swing for 5V lnput - 3.
