HI7188 Sigma-Delta A/D Sub-System

Intersil Corporation

Description

HI7188 August 1997 8-Channel, 16-Bit, High Precision, Sigma-Delta A/D Sub-System .
The HI7188 is an easy-to-use 8-Channel sigma-delta programmable A/D subsystem ideal for low frequency physical and electrical measurements in scientiﬁ.

📥 Download Datasheet

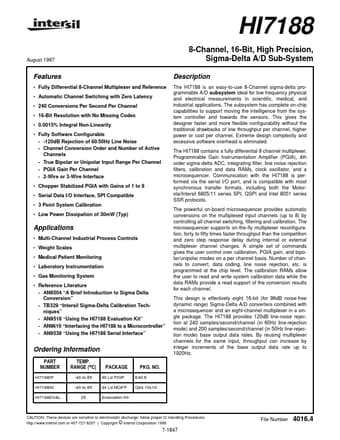

HI7188 Datasheet Preview — Preview of HI7188 PDF

Datasheet Specifications

Part number: HI7188
Manufacturer: Intersil Corporation
File Size: 162.60 KB
Datasheet: HI7188_IntersilCorporation.pdf
Description: Sigma-Delta A/D Sub-System

Features

* Fully Differential 8-Channel Multiplexer and Reference
* Automatic Channel Switching with Zero Latency
* 240 Conversions Per Second Per Channel
* 16-Bit Resolution with No Missing Codes
* 0.0015% Integral Non-Linearity
* Fully Software Conﬁgurable -

Applications

* The subsystem has complete on-chip capabilities to support moving the intelligence from the system controller and towards the sensors. This gives the designer faster and more ﬂexible conﬁgurability without the traditional drawbacks of low throughput per channel, higher power or cost per channel. Ex
