HA3-2546-5 - 30MHz/ Voltage Output/ Two Quadrant Analog Multiplier

Key Features

  • High Speed Voltage Output.
  • . . 300V/µs.
  • Low Multiplication error.
  • . . .1.6%.
  • Input Bias Currents.
  • . 1.2µA.
  • Signal Input Feedthrough.
  • . -52dB.
  • Wide Signal Bandwidth.
  • . 30MHz.
  • Wide Control Bandwidth.
  • . 17MHz.
  • Gain Flatness to 5MHz.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HA3-2625-5 Uncompensated Operational Amplifiers Renesas
HA3-2840-5 600MHz/ Very High Slew Rate Operational Amplifier Harris Corporation
HA3-2840-9 600MHz/ Very High Slew Rate Operational Amplifier Harris Corporation
HA3001 2.0 - 4.0 GHz Broadband Amplifier HBH Microwave GmbH
HA3002 3.0 - 3.7 GHz Power Amplifier HBH Microwave GmbH

Other Datasheets by Intersil (Renesas)

Part Number Description
HA3-2540-5 400MHz/ Fast Settling Operational Amplifier
HA3-2540C-5 400MHz/ Fast Settling Operational Amplifier
HA3-2542-5 70MHz/ High Slew Rate/ High Output Current Operational Amplifier
HA3-2544C-5 50MHz/ Video Operational Amplifier
HA3-2505-5 12MHz/ High Input Impedance/ Operational Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

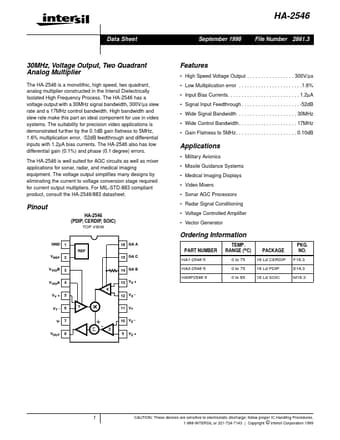

HA-2546 Data Sheet September 1998 File Number 2861.3 30MHz, Voltage Output, Two Quadrant Analog Multiplier The HA-2546 is a monolithic, high speed, two quadrant, analog multiplier constructed in the Intersil Dielectrically Isolated High Frequency Process. The HA-2546 has a voltage output with a 30MHz signal bandwidth, 300V/µs slew rate and a 17MHz control bandwidth. High bandwidth and slew rate make this part an ideal component for use in video systems. The suitability for precision video applications is demonstrated further by the 0.1dB gain flatness to 5MHz, 1.6% multiplication error, -52dB feedthrough and differential inputs with 1.2µA bias currents. The HA-2546 also has low differential gain (0.1%) and phase (0.1 degree) errors.
