HA2557883 - Wideband Four Quadrant Analog Multiplier (Current Output)

Intersil Corporation

The HA2557883 by Intersil Corporation is a Wideband Four Quadrant Analog Multiplier (Current Output). Below is the official datasheet preview.

📥 Download Datasheet

HA2557883 Wideband Four Quadrant Analog Multiplier (Current Output) by Intersil Corporation - Datasheet Preview — Official preview page of the **HA2557883** Wideband Four Quadrant Analog Multiplier (Current Output) datasheet (Intersil Corporation).

Datasheet Details

Part number	HA2557883
Manufacturer	Intersil Corporation
File Size	430.90 KB
Description	Wideband Four Quadrant Analog Multiplier (Current Output)
Datasheet	HA2557883_IntersilCorporation.pdf

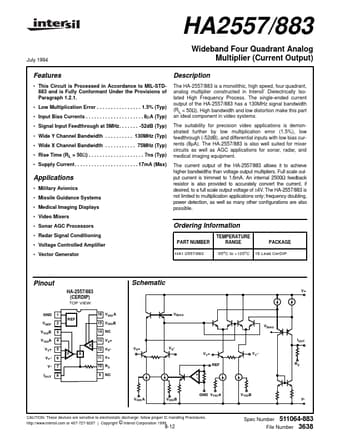

Additional preview pages of the HA2557883 datasheet.

HA2557883 Product details

Description

The HA-2557/883 is a monolithic, high speed, four quadrant, analog multiplier constructed in Intersil’ Dielectrically Isolated High Frequency Process.

Features

This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
Low Multiplication Error.
. 1.5% (Typ).
Input Bias Currents.
. 8µA (Typ).
Signal Input Feedthrough at 5MHz.
. . -52dB (Typ).
Wide Y Channel Bandwidth.
130MHz (Typ).
Wide X Channel Bandwidth.
. 75MHz (Typ).
Rise Tim.
