HA1-5320883 - High Speed Precision Sample and Hold Amplifier

General Description

The HA-5320/883 was designed for use in precision, high speed data acquisition systems.

The circuit consists of an input transconductance amplifier capable of providing large amounts of charging current, a low leakage analog switch, and an output integrating amplifier.

Key Features

  • This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
  • Gain, DC.
  • . . . . 2 x 106 V/V (Typ).
  • Acquisition Time.
  • 1.0µs (0.01%) (Typ).
  • Droop Rate.
  • . 0.08µV/µs (+25oC) (Typ) 17µV/µs (Full Temperature) (Typ).
  • Aperture Time.
  • 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HA10 Current Transducer 5/10a LEM
HA1099 18-pin Flash microcontroller Introduction Microchip
HA11 1.0 AMP.HIGH EFFICIENCY RECTIFIERS Jinan Gude Electronic Device
HA11122W Amplifier System Hitachi
HA11211 FM / AM Stereo Receiver System Hitachi

Other Datasheets by Intersil (Renesas)

Part Number Description
HA1-5320-2 1 Microsecond Precision Sample and Hold Amplifier
HA1-5320-5 1 Microsecond Precision Sample and Hold Amplifier
HA1-5330-2 650ns Precision Sample and Hold Amplifier
HA1-5330-5 650ns Precision Sample and Hold Amplifier
HA1-5340883 High Speed/ Low Distortion/ Precision Monolithic Sample and Hold Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

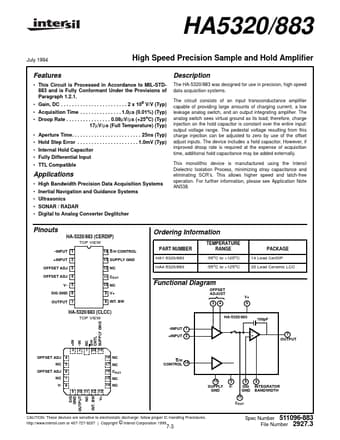

HA5320/883 July 1994 High Speed Precision Sample and Hold Amplifier Description The HA-5320/883 was designed for use in precision, high speed data acquisition systems. The circuit consists of an input transconductance amplifier capable of providing large amounts of charging current, a low leakage analog switch, and an output integrating amplifier. The analog switch sees virtual ground as its load; therefore, charge injection on the hold capacitor is constant over the entire input/ output voltage range. The pedestal voltage resulting from this charge injection can be adjusted to zero by use of the offset adjust inputs. The device includes a hold capacitor. However, if improved droop rate is required at the expense of acquisition time, additional hold capacitance may be added externally.
