HA-4741 - Quad/ 3.5MHz/ Operational Amplifier

General Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Key Features

  • Slew Rate.
  • . 1.6V/µs.
  • Bandwidth.
  • . 3.5MHz.
  • Input Voltage Noise.
  • . . 9nV/√Hz.
  • Input Offset Voltage.
  • . . . . 0.5mV.
  • Input Bias Current.
  • . 60nA.
  • Supply Range.
  • . . . . ±2V to ±20V.
  • No Cro.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HA-460 CRYSTAL CLOCK OSCILLATORS NEL
HA-4902-883 Precision Quad Comparator Intersil
HA-051 10/100 BASE-T SMT TRANSFORMER Taimag
HA-081 10/100 BASE-T SMT TRANSFORMER Taimag
HA-1210 TTL Compatible Enable/Disable NEL

Other Datasheets by Intersil (Renesas)

Part Number Description
HA-4900 Precision Quad Comparators
HA-4902 Precision Quad Comparators
HA-4905 Precision Quad Comparators
HA-2404 40MHz/ PRAM Four Channel Programmable Amplifiers
HA-2405 40MHz/ PRAM Four Channel Programmable Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

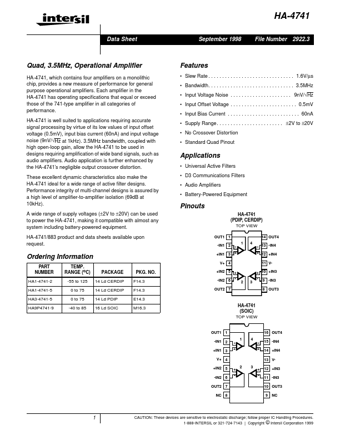

HA-4741 Data Sheet September 1998 File Number 2922.3 Quad, 3.5MHz, Operational Amplifier HA-4741, which contains four amplifiers on a monolithic chip, provides a new measure of performance for general purpose operational amplifiers. Each amplifier in the HA-4741 has operating specifications that equal or exceed those of the 741-type amplifier in all categories of performance. HA-4741 is well suited to applications requiring accurate signal processing by virtue of its low values of input offset voltage (0.5mV), input bias current (60nA) and input voltage noise (9nV/√Hz at 1kHz). 3.5MHz bandwidth, coupled with high open-loop gain, allow the HA-4741 to be used in designs requiring amplification of wide band signals, such as audio amplifiers.
