EL5392A - Triple 600MHz Current Feedback Amplifier

Intersil Corporation

The EL5392A by Intersil Corporation is a Triple 600MHz Current Feedback Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

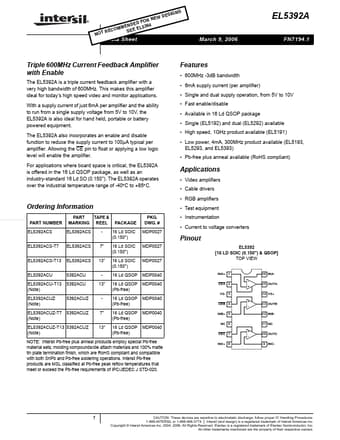

EL5392A Triple 600MHz Current Feedback Amplifier by Intersil Corporation - Datasheet Preview — Official preview page of the **EL5392A** Triple 600MHz Current Feedback Amplifier datasheet (Intersil Corporation).

Datasheet Details

Part number	EL5392A
Manufacturer	Intersil Corporation
File Size	394.56 KB
Description	Triple 600MHz Current Feedback Amplifier
Datasheet	EL5392A_IntersilCorporation.pdf
Additional preview pages of the EL5392A datasheet.

EL5392A Product details

Description

CONDITIONS MIN TYP MAX UNIT AV = +1 AV = +2 600 300 25 MHz MHz MHz V/µs ns dB nV/√Hz pA/√Hz pA/√Hz % ° BW1 SR tS CS eN iNiN+ dG dP 0.1dB Bandwidth Slew Rate 0.1% Settling Time Channel Separation Input Voltage Noise IN- Input Current Noise IN+ Input Current Noise Differential Gain Error (Note 1) Differential Phase Error (Note 1) AV = +2 AV = +2 VO = -2.5V to +2.5V, AV = +2 VOUT = -2.5V to +2.5V, AV = -1 f = 5MHz 2000 2300 9 60 4.1 20 50 0.015 0.04 DC PERFORMANCE VOS TCVOS ROL Offset Voltag

Features

600MHz -3dB bandwidth.
6mA supply current (per amplifier).
Single and dual supply operation, from 5V to 10V.
Fast enable/disable.
Available in 16 Ld QSOP package.
Single (EL5192) and dual (EL5292) available.
High speed, 1GHz product available (EL5191).
Low power, 4mA, 300MHz product available (EL5193, EL5293, and EL5393).
Pb-free plus anneal available (RoHS compliant).
