EL2286 - 250MHz/3mA Current Mode Feedback Amp w/Disable

Product Overview

Intersil Corporation

Datasheet Details

Part number	EL2286
Manufacturer	Intersil Corporation
File Size	343.17 KB
Description	250MHz/3mA Current Mode Feedback Amp w/Disable
Datasheet	EL2286 Datasheet

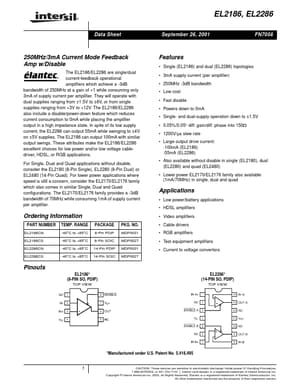

Additional preview pages of the EL2286 datasheet.

Product details

Description

Average Input Offset Voltage Drift VOS Matching + Input Current + IIN Matching - Input Current -IIN Matching Common Mode Rejection Ratio - Input Current Common Mode Rejection VCM = ±3.5V Power Supply Rejection Ratio - Input Current Power Supply Rejection Transimpedance + Input Resistance + Input Capacitance Common Mode Input Range Output Voltage Swing VS is moved from ±4V to ±6V VS is moved from ±4V to ±6V VOUT = ±2.5V VCM = ±3.5V IO Output Current EL2186 only EL2286 only, per Amplifier IO

Features

Single (EL2186) and dual (EL2286) topologies.
3mA supply current (per amplifier).
250MHz -3dB bandwidth.
Low cost.
Fast disable.
Powers down to 0mA.
Single- and dual-supply operation down to ±1.5V.
0.05%/0.05° diff. gain/diff. phase into 150Ω.
1200V/µs slew rate.
Large output drive current: -100mA (EL2186) -55mA (EL2286).
Also available without disable in single (EL2180), dual (EL2280) and quad (E.
