Datasheet4U.com

CDP1852 - Byte-Wide Input/Output Port

Intersil Corporation

📥 Download Datasheet

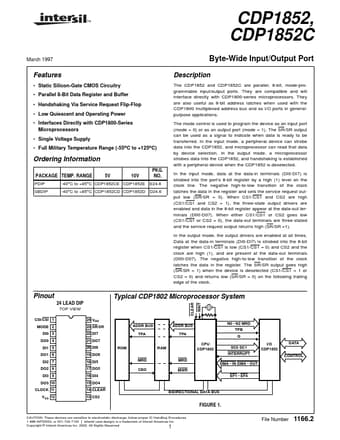

CDP1852 Datasheet Preview — Preview of CDP1852 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CDP1852
Manufacturer	Intersil Corporation
File Size	153.30 KB
Description	Byte-Wide Input/Output Port
Datasheet	CDP1852_IntersilCorporation.pdf

CDP1852 Product details

Description

The CDP1852 and CDP1852C are parallel, 8-bit, mode-programmable input/output ports.

Features

Static Silicon-Gate CMOS Circuitry.
Parallel 8-Bit Data Register and Buffer.
Handshaking Via Service Request Flip-Flop.
Low Quiescent and Operating Power.
Interfaces Directly with CDP1800-Series Microprocessors.
Single Voltage Supply.
Full Military Temperature Range (-55oC to +125oC) Ordering Information.
