CDP1822 - 256-Word x 4-Bit LSI Static RAM

Name: CDP1822
SKU: CDP1822-104007

Intersil Corporation

📥 Download Datasheet

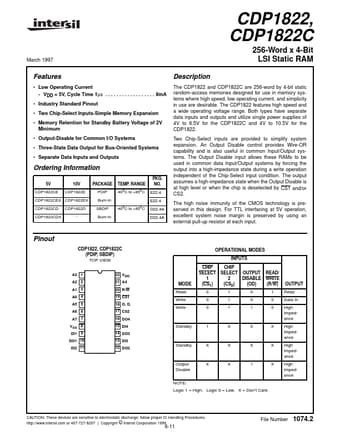

CDP1822 Datasheet Preview — Preview of CDP1822 PDF

Datasheet Details

Part number	CDP1822
Manufacturer	Intersil Corporation
File Size	45.11 KB
Description	256-Word x 4-Bit LSI Static RAM
Datasheet	CDP1822_IntersilCorporation.pdf

CDP1822 Product details

Description

The CDP1822 and CDP1822C are 256-word by 4-bit static random-access memories designed for use in memory systems where high speed, low operating current, and simplicity in use are desirable.

Features

high speed and a wide operating voltage range. Both types have separate data inputs and outputs and utilize single power supplies of 4V to 6.5V for the CDP1822C and 4V to 10.5V for the CDP1822. Two Chip-Select inputs are provided to simplify system expansion. An Output Disable control provides Wire-OR capability and is also useful in common Input/Output systems. The Output Disable input allows these RAMs to be used in common data Input/Output systems by forcing the output into a high-impedance s.
