CDP1805 - CMOS 8-Bit Microprocessor with On-Chip RAM and Counter/Timer

Description

The CDP1805AC and CDP1806AC are functional and performance enhancements of the CDP1802 CMOS 8-bit register-oriented microprocessor series and are designed for use in general-purpose applications.

The CDP1805AC hardware enhancements include a 64byte RAM and an 8-bit presettable down counter.

Features

  • Instruction Time of 3.2µs, -40oC to +85oC.
  • 123 Instructions - Upwards Software Compatible With CDP1802.
  • BCD Arithmetic Instructions.
  • Low-Power IDLE Mode.
  • Pin Compatible With CDP1802 Except for Terminal 16.
  • 64K-Byte Memory Address Capability.
  • 64 Bytes of On-Chip RAM†.
  • 16 x 16 Matrix of On-Board Registers.
  • On-Chip Crystal or RC Controlled Oscillator.
  • 8-Bit Counter/Timer n Ordering Information CDP1805AC CDP.

📥 Download Datasheet

📁 Similar Datasheet

  • CDP1805AC - CMOS 8-Bit Microprocessor (GE)
  • CDP1802A - CMOS 8-Bit Microprocessor (GE)
  • CDP1802AC - CMOS 8-Bit Microprocessor (GE)
  • CDP1802BC - CMOS 8-Bit Microprocessor (GE)
  • CDP1804AC - CMOS 8-Bit Microprocessor (GE)
  • CDP1806AC - CMOS 8-Bit Microprocessor (GE)
  • CDP1822 - 256-Word by 4-Bit LSI Static Random-Access Memory (GE)
  • CDP1822C - 256-Word by 4-Bit LSI Static Random-Access Memory (GE)
  • CDP1823 - 128-Word x 8-Bit Static Random-Access Memory (GE)
  • CDP1823C - 128-Word x 8-Bit Static Random-Access Memory (GE)
Other Datasheets by Intersil Corporation
  • CDP1805AC - CMOS 8-Bit Microprocessor with On-Chip RAM and Counter/Timer
  • CDP1802A - CMOS 8-Bit Microprocessors
  • CDP1802AC - High-Reliability CMOS 8-Bit Microprocessor
  • CDP1802AC3 - High-Reliability CMOS 8-Bit Microprocessor
  • CDP1802ACD3 - High-Reliability CMOS 8-Bit Microprocessor
  • CDP1802BC - CMOS 8-Bit Microprocessors
  • CDP1806AC - CMOS 8-Bit Microprocessor with On-Chip RAM and Counter/Timer
  • CDP1821C - High-Reliability CMOS 1024-Word x 1-Bit Static RAM

Full PDF Text Transcription

Click to expand full text

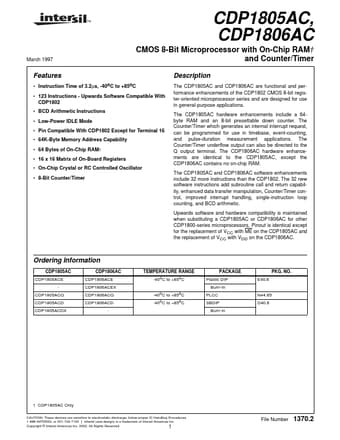

TM CDP1805AC, CDP1806AC CMOS 8-Bit Microprocessor with On-Chip RAM† and Counter/Timer Description The CDP1805AC and CDP1806AC are functional and performance enhancements of the CDP1802 CMOS 8-bit register-oriented microprocessor series and are designed for use in general-purpose applications. The CDP1805AC hardware enhancements include a 64byte RAM and an 8-bit presettable down counter. The Counter/Timer which generates an internal interrupt request, can be programmed for use in timebase, event-counting, and pulse-duration measurement applications. The Counter/Timer underflow output can also be directed to the Q output terminal. The CDP1806AC hardware enhancements are identical to the CDP1805AC, except the CDP1806AC contains no on-chip RAM.
