CD82C54 - CMOS Programmable Interval Timer

Intersil Corporation

The CD82C54 by Intersil Corporation is a CMOS Programmable Interval Timer. Below is the official datasheet preview.

📥 Download Datasheet

CD82C54 CMOS Programmable Interval Timer by Intersil Corporation - Datasheet Preview — Official preview page of the CD82C54 CMOS Programmable Interval Timer datasheet (Intersil Corporation).

Datasheet Details

Part number	CD82C54
Manufacturer	Intersil Corporation
File Size	142.58 KB
Description	CMOS Programmable Interval Timer
Datasheet	CD82C54_IntersilCorporation.pdf

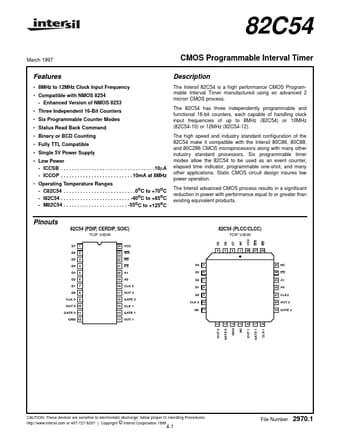

Additional preview pages of the CD82C54 datasheet.

CD82C54 Product details

Description

The Intersil 82C54 is a high performance CMOS Programmable Interval Timer manufactured using an advanced 2 micron CMOS process.

Features

8MHz to 12MHz Clock Input Frequency.
Compatible with NMOS 8254 - Enhanced Version of NMOS 8253.
Three Independent 16-Bit Counters.
Six Programmable Counter Modes.
Status Read Back Command.
Binary or BCD Counting.
Fully TTL Compatible.
Single 5V Power Supply.
Low Power - ICCSB.
. . . .10µA - ICCOP.
. 10mA at 8MHz.
