CD4555BMS - CMOS Dual Binary to 1 of 4 Decoder/Demultiplexers

Intersil Corporation

📥 Download Datasheet

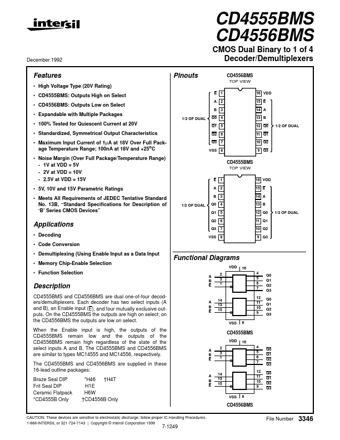

CD4555BMS Datasheet Preview — Preview of CD4555BMS PDF

Datasheet Details

Part number	CD4555BMS
Manufacturer	Intersil Corporation
File Size	96.41 KB
Description	CMOS Dual Binary to 1 of 4 Decoder/Demultiplexers
Datasheet	CD4555BMS_IntersilCorporation.pdf

CD4555BMS Product details

Description

of ‘B’ Series CMOS Devices” 1/2 OF DUAL CD4555BMS TOP VIEW E A B Q0 Q1 Q2 Q3 VSS 1 2 3 4 5 6 7 8 16 VDD 15 E 14 A 13 B 12 Q0 11 Q1 10 Q2 9 Q3 1/2 OF DUAL Applications Decoding Code Conversion Demultiplexing (Using Enable Input as a Data Input Memory Chip-Enable Selection Function Selection Functional Diagrams VDD A B E 2 3 1 16 4 5 6 7 12 11 10 9 VSS 8 Q0 Q1 Q2 Q3 Q0 Q1 Q2 Q3 Description CD4555BMS and CD4556BMS are dual one-of-four decoders/d

Features

High Voltage Type (20V Rating).
CD4555BMS: Outputs High on Select.
CD4556BMS: Outputs Low on Select.
Expandable with Multiple Packages CD4556BMS TOP VIEW 16 VDD 15 E 14 A 13 B 12 Q0 11 Q1 10 Q2 9 Q3 1/2 OF DUAL 1/2 OF DUAL Q0 Q1 Q2 Q3 VSS.
100% Tested for Quiescent Current at 20V.
Standardized, Symmetrical Output Characteristics.
Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC.
