CD4066BMS - CMOS 4-Bit Magnitude Comparator

Description

CD4066BMS is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals.

It is pin for pin compatible with CD4016B, but exhibits a much lower on state resistance.

In addition, the on-state resistance is relatively constant over the full input signal range.

Features

  • For Transmission or Multiplexing of Analog or Digital Signals.
  • High Voltage Types (20V Rating).
  • 15V Digital or ±7.5V Peak-to-Peak Switching.
  • 125Ω Typical On-State Resistance for 15V Operation.
  • Switch On-State Resistance Matched to Within 5Ω Over 15V Signal Input Range.
  • On-State Resistance Flat Over Full Peak-to-Peak Signal Range.
  • High On/Off Output Voltage Ratio - 80dB Typ. at FIS = 10kHz, RL = 1kΩ.
  • High Degree of Linearity.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CD4066BM Quad Bilateral Switch National Semiconductor
CD4066BM CMOS Quad Bilateral Switch Texas Instruments
CD4066B CMOS QUAD BILATERAL SWITCH RCA
CD4066B CMOS Quad Bilateral Switch Texas Instruments
CD4066B-Q1 CMOS Quad Bilateral Switch Texas Instruments

Other Datasheets by Intersil (Renesas)

Part Number Description
CD4060BMS CMOS 14 Stage Ripple-Carry Binary Counter/Divider/Oscillator
CD4063BMS CMOS 4-Bit Magnitude Comparator
CD4067BMS CMOS Analog Multiplexers/Demultiplexers
CD4068BMS CMOS 8 Input NAND/AND Gate
CD4069UBMS CMOS Hex Inverter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

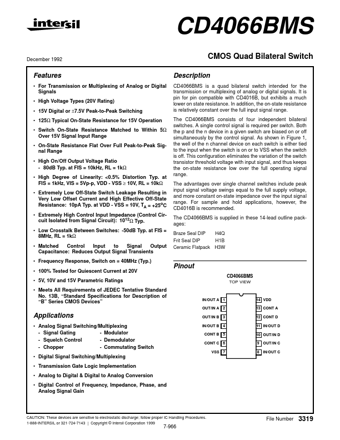

CD4066BMS December 1992 CMOS Quad Bilateral Switch Description CD4066BMS is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin for pin compatible with CD4016B, but exhibits a much lower on state resistance. In addition, the on-state resistance is relatively constant over the full input signal range. The CD4066BMS consists of four independent bilateral switches. A single control signal is required per switch. Both the p and the n device in a given switch are biased on or off simultaneously by the control signal. As shown in Figure 1, the well of the n channel device on each switch is either tied to the input when the switch is on or to VSS when the switch is off.
