CA224 - Operational Amplifiers

Intersil Corporation

📥 Download Datasheet

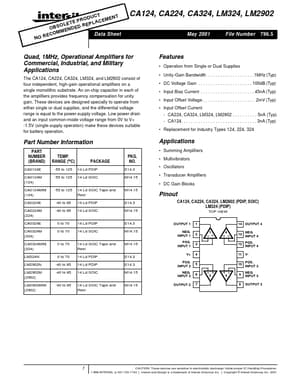

CA224 Datasheet Preview — Preview of CA224 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CA224
Manufacturer	Intersil Corporation
File Size	200.02 KB
Description	Operational Amplifiers
Datasheet	CA224_IntersilCorporation.pdf

CA224 Product details

Features

Operation from Single or Dual Supplies.
Unity-Gain Bandwidth.
. . . .1MHz (Typ).
DC Voltage Gain.
. . 100dB (Typ).
Input Bias Current.
. . 45nA (Typ).
Input Offset Voltage.
. 2mV (Typ).
Input Offset Current - CA224, CA324, LM324, LM2902.
5nA (Typ) - CA124.
