ACTS245T - Radiation Hardened Octal Non-Inverting Bidirectional Bus Transceiver

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

  • QML Class T, Per MIL-PRF-38535.
  • Radiation Performance - Gamma Dose (γ) 1 x 105 RAD(Si) - Latch-Up Free Under Any Conditions - Single Event Upset (SEU) Immunity: 100 MEV-cm2/mg.
  • 1.25 Micron Radiation Hardened SOS CMOS.
  • Significant Power Reduction Compared to ALSTTL Logic.
  • DC Operating Voltage Range.
  • . . 4.5V to 5.5V.
  • Input Logic Levels - VIL = 0.8V Max.

📥 Download Datasheet

Datasheet Details

Part number ACTS245T
Manufacturer Intersil (Renesas)
File Size 78.99 KB
Description Radiation Hardened Octal Non-Inverting Bidirectional Bus Transceiver
Datasheet download datasheet ACTS245T Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ACTS74MS Radiation Hardened Dual-D Flip-Flop Intersil
ACT-D1M96S ACT-D1M96S High Speed 96 MegaBit 3.3V Synchronous DRAM Multichip Module Aeroflex Circuit Technology
ACT-E128K32 High Speed 4 Megabit EEPROM Multichip Module Aeroflex
ACT-F128K32 High Speed 4 Megabit FLASH Multichip Module Aeroflex
ACT-F128K8 High Speed 1 Megabit Monolithic FLASH Aeroflex

Other Datasheets by Intersil (Renesas)

Part Number Description
ACTS245MS Radiation Hardened Octal Non-Inverting Bidirectional Bus Transceiver
ACTS240MS High Reliability/ Radiation Hardened Octal Buffer/Line Driver/ Three-State
ACTS240T High Reliability/ Radiation Hardened Octal Buffer/Line Driver/ Three-State/ Inverting
ACTS244MS Radiation Hardened Octal Non-Inverting Three-State Buffer
ACTS20MS Radiation Hardened Dual 4-Input NAND Gate

Full PDF Text Transcription

Click to expand full text

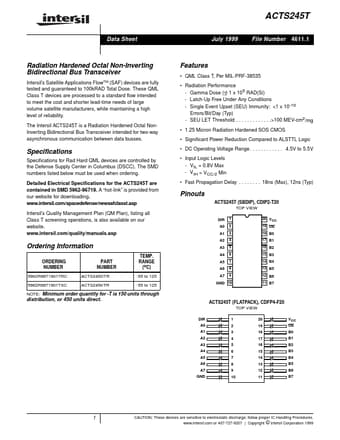

ACTS245T Data Sheet July 1999 File Number 4611.1 Radiation Hardened Octal Non-Inverting Bidirectional Bus Transceiver Intersil’s Satellite Applications FlowTM (SAF) devices are fully tested and guaranteed to 100kRAD Total Dose. These QML Class T devices are processed to a standard flow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability. The Intersil ACTS245T is a Radiation Hardened Octal NonInverting Bidirectional Bus Transceiver intended for two-way asynchronous communication between data busses.
