82C82 CMOS Octal Latching Bus Driver

82C82 Description

82C82 March 1997 CMOS Octal Latching Bus Driver .
The Intersil 82C82 is a high performance CMOS Octal Latching Buffer manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV).

82C82 Features

* Full Eight-Bit Parallel Latching Buffer
* Bipolar 8282 Compatible
* Three-State Noninverting Outputs
* Propagation Delay
* . 35ns Max.
* Gated Inputs: - Reduce Operating Power - Eliminate the Need for Pull-Up Resistors

📥 Download Datasheet

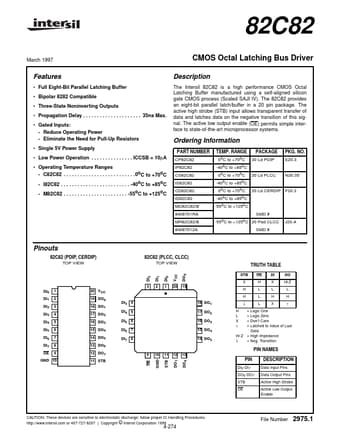

Preview of 82C82 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
82C82
Manufacturer
Intersil Corporation
File Size
103.22 KB
Datasheet
82C82_IntersilCorporation.pdf
Description
CMOS Octal Latching Bus Driver
