MFC - DC/DC Converter MFC Series

Product Overview

Datasheet Details

Part number	MFC
Manufacturer	Interpoint Corporation
File Size	210.93 KB
Description	DC/DC Converter MFC Series
Datasheet	MFC Datasheet

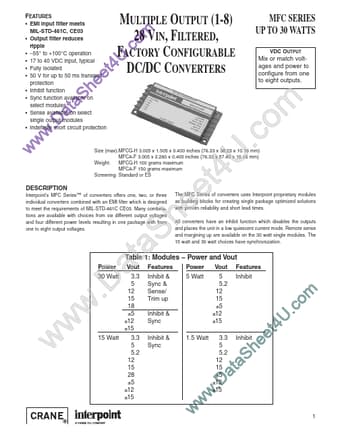

Additional preview pages of the MFC datasheet.

Product details

Description

Interpoint’s MFC Series™ of converters offers one, two, or three individual converters combined with an EMI filter which is designed to meet the requirements of MIL-STD-461C CE03.

Features

EMI input filter meets MIL-STD-461C, CE03.
Output filter reduces ripple.
55° to +100°C operation.
17 to 40 VDC input, typical.
Fully Isolated.
50 V for up to 50 ms transient protection.
Inhibit function.
Sync function available on select modules.
Sense available on select single output modules.
Indefinite short circuit protection w w a t a D . w e h S.
