T70HFL60 - FAST RECOVERY DIODES

Download the T70HFL60 datasheet PDF. This datasheet also covers the T70HFL variant, as both devices belong to the same fast recovery diodes family and are provided as variant models within a single manufacturer datasheet.

Description

This serie of T-module uses fast recovery power diodes in a single diode configuration.

The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assemblies to be built.

Features

  • Fast recovery time characteristics Electrically isolated base plate 3500 VRMS isolating voltage Standard JEDEC package Simplified mechanical designs, rapid assembly Large creepage distances UL E78996 approved.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (T70HFL_InternationalRectifier.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
T70HFL60 Fast Recovery Diodes Vishay
T70HFL Fast Recovery Diodes Vishay
T70HFL10 Fast Recovery Diodes Vishay
T70HFL100 Fast Recovery Diodes Vishay
T70HFL20 Fast Recovery Diodes Vishay

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
T70HFL FAST RECOVERY DIODES
T70HFL10 FAST RECOVERY DIODES
T70HFL100 FAST RECOVERY DIODES
T70HFL20 FAST RECOVERY DIODES
T70HFL40 FAST RECOVERY DIODES

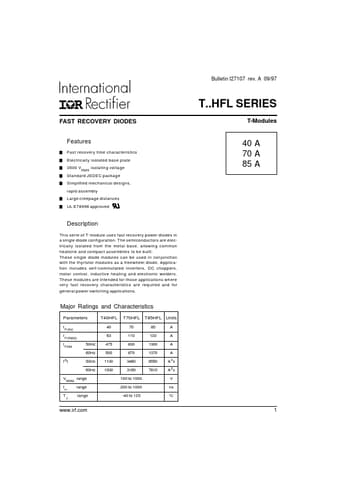

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
FAST RECOVERY DIODES Features Fast recovery time characteristics Electrically isolated base plate 3500 VRMS isolating voltage Standard JEDEC package Simplified mechanical designs, rapid assembly Large creepage distances UL E78996 approved Description This serie of T-module uses fast recovery power diodes in a single diode configuration. The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assemblies to be built. These single diode modules can be used in conjunction with the thyristor modules as a freewheel diode. Application includes self-commutated inverters, DC choppers, motor control, inductive heating and electronic welders.
