Description

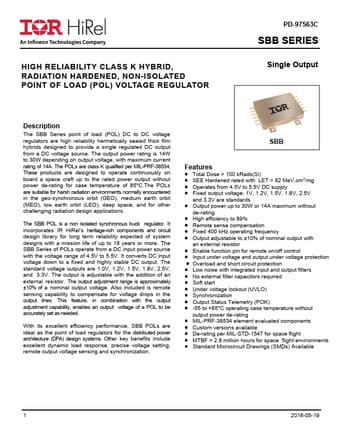

HIGH RELIABILITY CLASS K HYBRID, RADIATION HARDENED, NON-ISOLATED POINT OF LOAD (POL) VOLTAGE REGULATOR PD-97563C SBB SERIES Single Output Descripti.
The SBB Series point of load (POL) DC to DC voltage regulators are high reliability hermetically sealed thick film hybrids designed to provide a singl.
Features
* Total Dose > 100 kRads(Si)
* SEE Hardened rated with LET > 82 MeV. cm2/mg
* Operates from 4.5V to 5.5V DC supply
* Fixed output voltage: 1V, 1.2V, 1.5V, 1.8V, 2.5V
and 3.3V are standards
* Output power up to 30W or 14A maximum without
de-rating
* High efficiency to 89%
Applications
* The SBB POL is a non isolated synchronous buck regulator. It incorporates IR HiRel’s heritage-rich components and circuit design library for long term reliability expected of system designs with a mission life of up to 18 years or more. The SBB Series of POLs operate from a DC input power source wi
