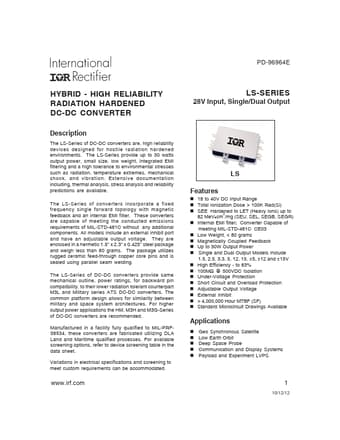

LS2805S, LS2801R5S - HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER

International Rectifier

Datasheet Details

Part number	LS2805S, LS2801R5S
Manufacturer	International Rectifier
File Size	243.99 KB
Description	HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER
Datasheet	LS2801R5S-InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: LS2805S, LS2801R5S. Please refer to the document for exact specifications by model.

The LS-Series of DC-DC converters are, high reliability devices designed for hostile radiation hardened environments.

n 18 to 40V DC Input Range n Total Ionization Dose > 100K Rad(Si) n SEE Hardened to LET (Heavy Ions) up to 82 MeV.
cm2/mg (SEU, SEL, SEGB, SEGR) n Internal EMI filter; Converter Capable of meeting MIL-STD-461C CE03 n Low Weight, < 80 grams n Magnetically Coupled Feedback n Up to 30W Output Power n Single and Dual Output Models Include 1.5, 2.5, 3.3, 5, 12, 15, ±5, ±12 and ±15V n High Efficiency - to 83% n 100MΩ @ 500VDC Isolation n Under-Voltage Protection n Short Circuit and Overload Pro.
