JANTXV1N6843CCU3, JANS1N6843CCU3 SCHOTTKY RECTIFIER

JANTXV1N6843CCU3 Description

SCHOTTKY RECTIFIER HIGH EFFICIENCY SERIES PD-94085D 30CLJQ100 JANS1N6843CCU3 JANTX1N6843CCU3 JANTXV1N6843CCU3 30 Amp, 100V Ref: MIL-PRF-19500/681 Ma.
Features The 1N6843CCU3 center tap Schottky rectifier has been expressly designed to meet the rigorous requirements of high reliability environments.

JANTXV1N6843CCU3 Features

* The 1N6843CCU3 center tap Schottky rectifier has been expressly designed to meet the rigorous requirements of high reliability environments. It is packaged in the hermetic surface mount SMD-0.5 ceramic package. The device's forward voltage drop and reverse leakage current are optimized for the lowes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: JANTXV1N6843CCU3, JANS1N6843CCU3. Please refer to the document for exact specifications by model.

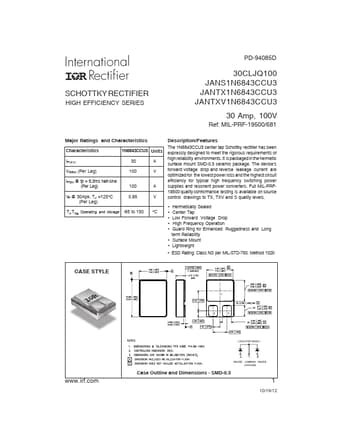

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
JANTXV1N6843CCU3, JANS1N6843CCU3
Manufacturer
International Rectifier
File Size
114.33 KB
Datasheet
JANS1N6843CCU3-InternationalRectifier.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: JANTXV1N6843CCU3, JANS1N6843CCU3.
Please refer to the document for exact specifications by model.
