JANS1N7062CCT1 - Schottky Rectifier

Product Overview

International Rectifier

📥 Download Datasheet

JANS1N7062CCT1 Schottky Rectifier by International Rectifier - Datasheet Preview — Datasheet preview – JANS1N7062CCT1

Datasheet Details

Part number	JANS1N7062CCT1
Manufacturer	International Rectifier
File Size	384.04 KB
Description	Schottky Rectifier
Datasheet	JANS1N7062CCT1 Datasheet
Note	This datasheet PDF includes multiple part numbers: JANS1N7062CCT1, JANS1N7062CCT1-1. Please refer to the document for exact specifications by model.

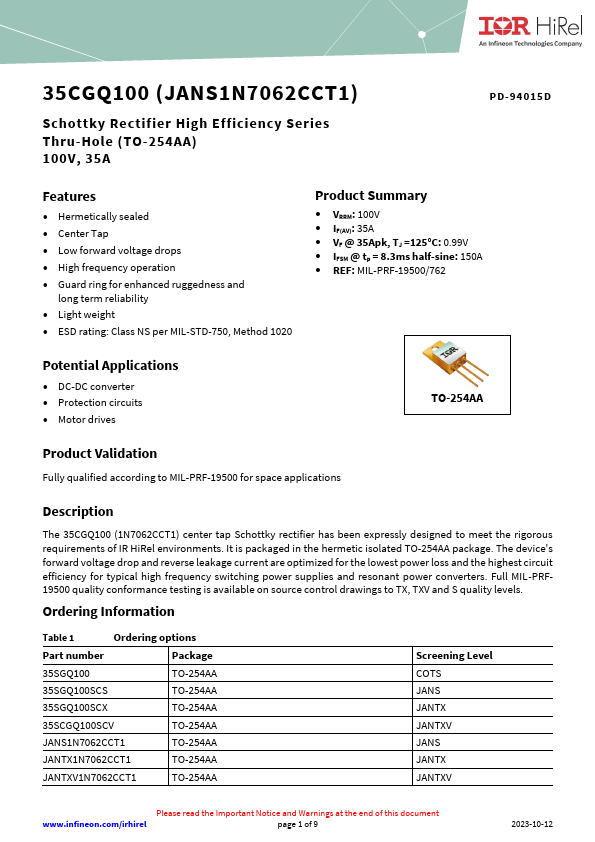

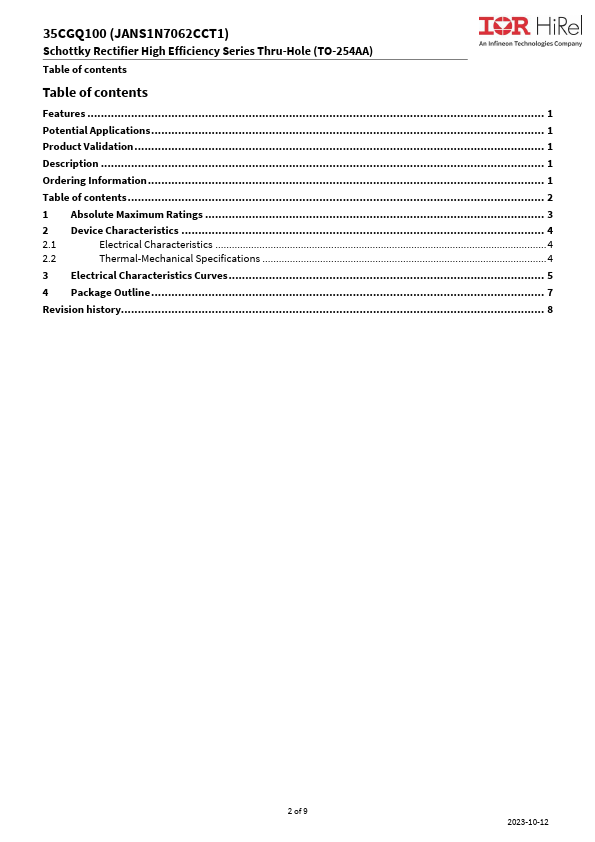

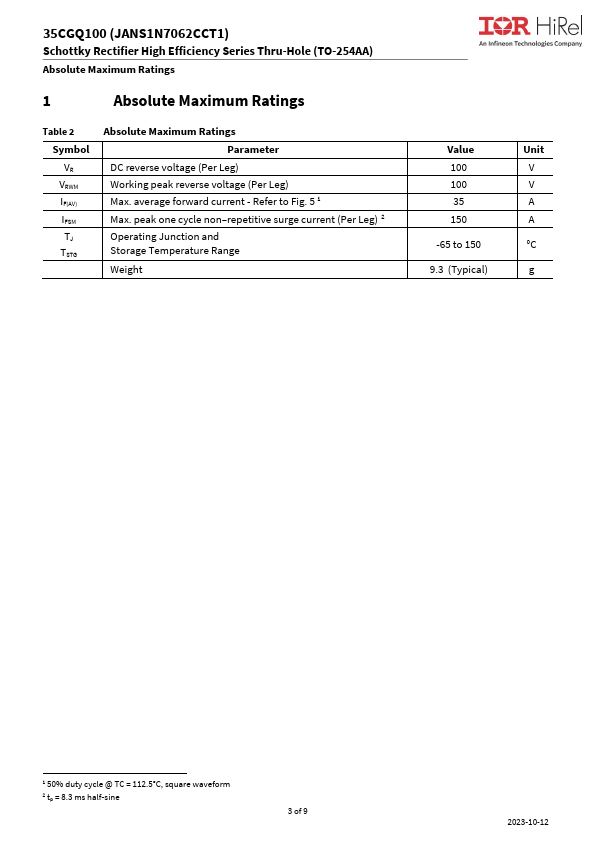

Additional preview pages of the JANS1N7062CCT1 datasheet.

Product details

Description

The 35CGQ100 (1N7062CCT1) center tap Schottky rectifier has been expressly designed to meet the rigorous requirements of IR HiRel environments.

Features

Hermetically sealed.
Center Tap.
Low forward voltage drops.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
Light weight.
ESD rating: Class NS per MIL-STD-750, Method 1020 Product Summary.
VRRM: 100V.
IF(AV): 35A.
VF @ 35Apk, TJ =125°C: 0.99V.
IFSM @ tp = 8.3ms half-sine: 150A.
REF: MIL-PRF-19500/762 Potential.
