IRS2136 - (IRS2136 - IRS2138) 3-PHASE BRIDGE DRIVER

International Rectifier

📥 Download Datasheet

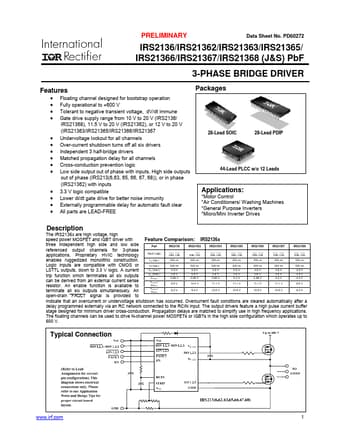

IRS2136 Datasheet Preview — Preview of IRS2136 PDF

Datasheet Details

Part number	IRS2136
Manufacturer	International Rectifier
File Size	631.42 KB
Description	(IRS2136 - IRS2138) 3-PHASE BRIDGE DRIVER
Datasheet	IRS2136_InternationalRectifier.pdf

IRS2136 Product details

Description

The IRS2136x are high voltage, high Feature Comparison: IRS2136x speed power MOSFET and IGBT driver with three independent high side and low side Part IRS2136 IRS21362 IRS21363 IRS21365 IRS21366 IRS21367 IRS21368 referenced output channels for 3-phase ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ Input Logic HIN, LIN HIN, LIN HIN, LIN HIN, LIN HIN, LIN HIN, LIN HIN, LIN applications.

Features

Floating channel designed for bootstrap operation Fully operational to +600 V Tolerant to negative transient voltage, dV/dt immune Gate drive supply range from 10 V to 20 V (IRS2136/ IRS21368), 11.5 V to 20 V (IRS21362), or 12 V to 20 V (IRS21363/IRS21365/IRS21366/IRS21367 Undervoltage lockout for all channels Over-current shutdown turns off all six drivers.
