IRMCF171 High Performance Sensorless Motor Controller

IRMCF171 Description

Rev.B IRMCF171 High Performance Sensorless Motor Control IC .
IRMCF171 is a high performance flash memory based motion control IC designed primarily for appliance applications.

IRMCF171 Features

* MCETM (Flexible Motion Control Engine) Dedicated computation engine for high efficiency sinusoidal sensorless motor control
* Built-in hardware peripheral for single or two shunt current feedback reconstruction and analog circuits
* Supports induction machine and both interior and surf

IRMCF171 Applications

* IRMCF171 is designed to achieve low cost yet high performance control solutions for advanced inverterized appliance motor control. IRMCF171 contains two computation engines integrated into one monolithic chip. One is the Flexible Motion Control Engine (MCETM) for sensorless control of permanent mag

📥 Download Datasheet

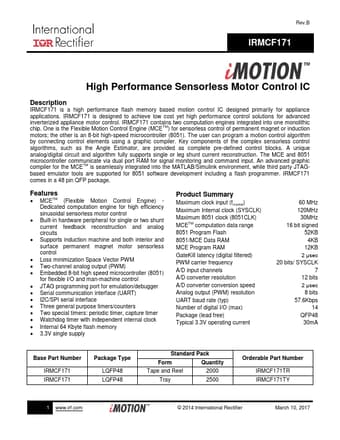

Preview of IRMCF171 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRMCF171
Manufacturer
International Rectifier
File Size
800.35 KB
Datasheet
IRMCF171-InternationalRectifier.pdf
Description
High Performance Sensorless Motor Controller
