IRLZ44NS, IRLZ44NL Power MOSFET

International Rectifier

Description

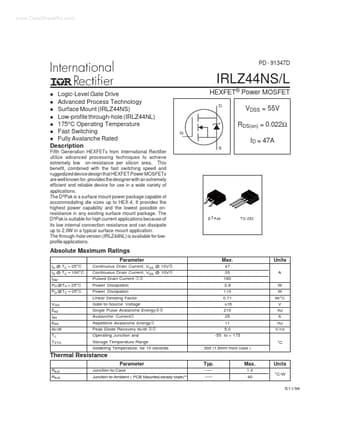

www.DataSheet4U.com PD - 91347D IRLZ44NS/L Logic-Level Gate Drive l Advanced Process Technology l Surface Mount (IRLZ44NS) l Low-profile through-hol.
l HEXFET® Power MOSFET D VDSS = 55V RDS(on) = 0.

📥 Download Datasheet

IRLZ44NS Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLZ44NS, IRLZ44NL. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRLZ44NS, IRLZ44NL
Manufacturer: International Rectifier
File Size: 186.75 KB
Datasheet: IRLZ44NL_InternationalRectifier.pdf
Description: Power MOSFET
Note: This datasheet PDF includes multiple part numbers: IRLZ44NS, IRLZ44NL.
Please refer to the document for exact specifications by model.

Features

* ) 4.20 (.1 65) -B 1.3 2 (.05 2) 1.2 2 (.04 8) 1 0.16 (.4 00 ) RE F. 6.47 (.2 55 ) 6.18 (.2 43 ) 15 .4 9 (.6 10) 14 .7 3 (.5 80) 5 .28 (.20 8) 4 .78 (.18 8) 2.7 9 (.110 ) 2.2 9 (.090 ) 2.61 (.1 03 ) 2.32 (.0 91 ) 1.3 9 (.0 5 5) 1.1 4 (.0 4 5) 8.8 9 (.3 50 ) R E F. 1.7 8 (.07 0) 1.2 7 (.05 0) 1

Applications

* The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible onresistance in any existing surface mount package. The D2Pak is suitable for high current applications because of its low internal connection
