IRLR024N, IRLU024N Power MOSFET

IRLR024N Description

PD- 91363E IRLR024N IRLU024N HEXFET® Power MOSFET l l l l l l Logic-Level Gate Drive Surface Mount (IRLR024N) Straight Lead (IRLU024N) Advanced Proc.
Fifth Generation HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible onresistance.

IRLR024N Features

* evices Fig 14. For N-Channel HEXFET® MOSFETs www. irf. com 7 IRLR/U024N D-Pak (TO-252AA) Package Outline Dimensions are shown in millimeters (inches) 6 .7 3 (.2 6 5 ) 6 .3 5 (.2 5 0 ) -A 5 .4 6 (.2 1 5 ) 5 .2 1 (.2 0 5 ) 4 1 .2 7 (.0 5 0 ) 0 .8 8 (.0 3 5 ) 2 .3 8 (.0 9 4 ) 2 .1 9 (.0 8 6 ) 1 .1

IRLR024N Applications

* The D-PAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. D-Pak I-Pak IRLR024N

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRLR024N, IRLU024N. Please refer to the document for exact specifications by model.

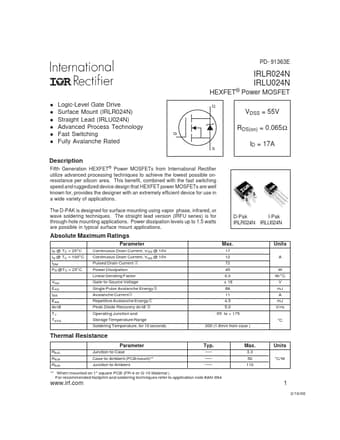

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRLR024N, IRLU024N
Manufacturer
International Rectifier
File Size
162.21 KB
Datasheet
IRLU024N_InternationalRectifier.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRLR024N, IRLU024N.
Please refer to the document for exact specifications by model.
