IRLML0100TRPBF - Power MOSFET

Name: IRLML0100TRPBF
SKU: IRLML0100TRPBF-682563

International Rectifier

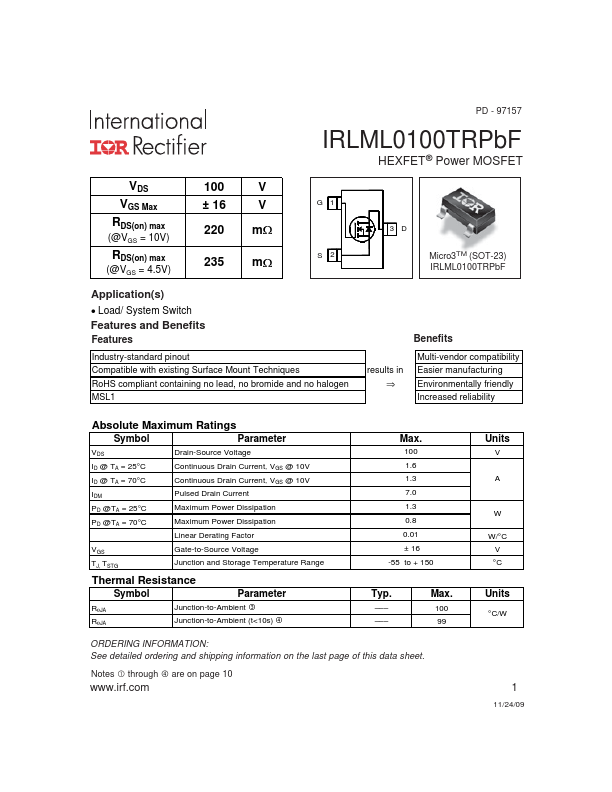

The IRLML0100TRPBF by International Rectifier is a Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	IRLML0100TRPBF
Manufacturer	International Rectifier
File Size	183.12 KB
Description	Power MOSFET
Datasheet	IRLML0100TRPBF_InternationalRectifier.pdf

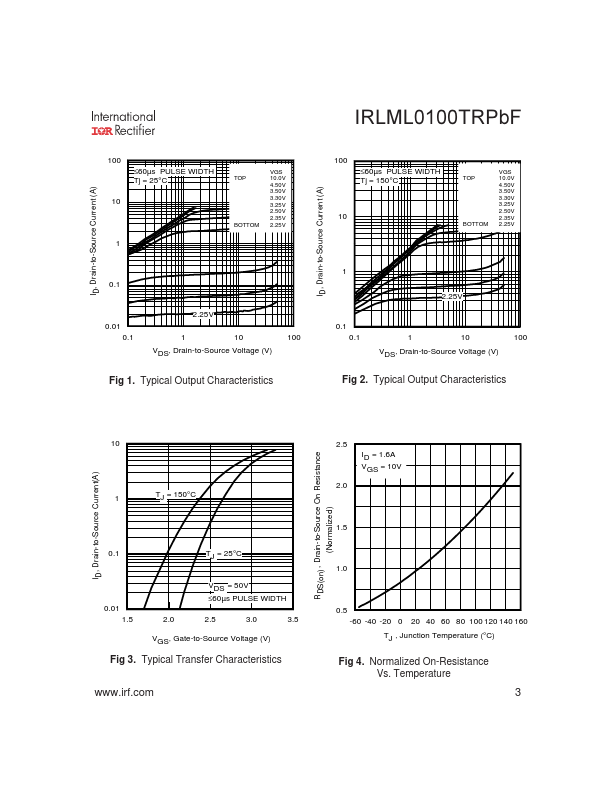

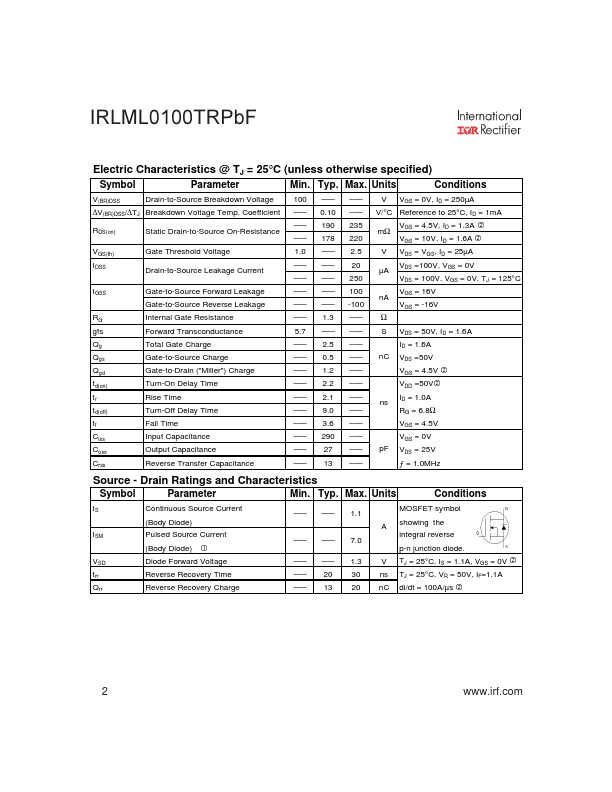

Additional preview pages of the IRLML0100TRPBF datasheet.

Features Industry-standard pinout Compatible with existing Surface Mount Techniques RoHS compliant containing no lead, no bromide and no halogen MSL1 Benefits results in ⇒ Multi-vendor compatibility Easier manufacturing Environmentally friendly Increased reliability Absolute Maximum Ratings Symbol Parameter VDS Drain-Source Voltage ID @ TA = 25°C Continuous Drain Current, VGS @ 10V ID @ TA = 70°C IDM PD @TA = 25°C PD @TA = 70°C Continuous Drain Current, VGS @ 10V Pulsed Drain Current.
